Chiksan Type Flow Line Iron Welded 3 Inch CWP 2000 Psi Figure 206 for Low Pressure Oil Gas Service Distributor



PME Chiksan Type flowline treating irons can be fabricated in integral fittings for high pressure application and welded type for low pressure oil and gas service.



High pressure Chiksan type flowline irons are up to working CWP (Psi) 6000, 10000 and 15000 with union ends Figure 602MxF, FIG 1002 MxF or FIG1502 MxF configuration.



The size of high pressure flowline irons packages can be changed as PME customer's requirements. PME provide Chiksan flowlines for high pressure or low pressure equipment for manifold, mud tank, fracturing and aciding.



PME API 16C Low pressure Chiksan pipe work are welding forged, rated at 2000 psi for 2", 3" and 4" ID flowline packages.

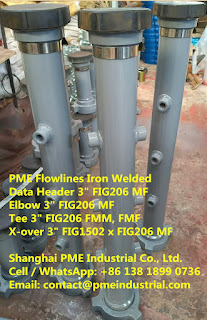

Partial Chiksan Type Flowline Iron Photo of PME Supplies



Data Header 3" FIG206 MxF

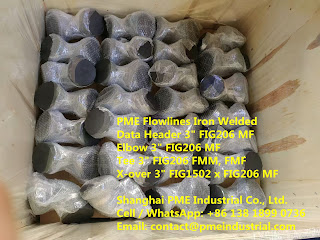

Elbow 3" FIG206 MXF



Tee 3" FIG206 FxMx, FxMxF



Union Crossover 3" FIG1502 x FIG206 MxF



All material can be supplied by PME Industrial as standard and H2S Sour Service. For more requirement, Target Tees, Double Cushion 90 , Ells, Cross, And Integral 45 Degree Elbow, find PME as your best partner for oilfield work.





PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

FMC Chiksan Flowline and PME Flowback forged Irons 2 Inch FIG1502 P537789 3139477 P506064 P503840

PME Flowback forged iron products are interchangeable with FMC Chiksan Flowline for oilfield industrial. The PME Industrial material serves for standard service and sour gas service.



Please send Part Number of FMC, you will receive good offer and quick response from PME sales team!



PME low torque plug valve Assembly 2" x 2" FIG 1502 MxF refer to FMC P537789 ULT 150 CWP 15000 Psi, Standard Service and for 1" x 2" ULT 150 valves, please note the PN FMC P516108.



PME longsweep swivel joint 2" FIG1502 MxM, WP 15000 Psi, Style 10 refer to FMC 3139477 LS-15 for three race. FMC 3144125 for PME style 30 and Style 80 swivel joint for 2" FIG1502 MxF.



PME integral fittings 2" CWP 15000 Psi cover FMC Elbows P506064 2" FIG1502 FxF, Tee P503840 2" FIG 1502 MFF, P503848 2" FIG1502 FMM, P505362 2" FIG1502MMF, P505364 2" FIG 1502 MMM and integral cross P503840 2" FIG1502 MxFxFxF.



Integral pup joint PN 3255522 features 2" FIG1502 MxF 4 FT and FMC 3255524 for 6 FT. PME Industrial can produce the integral pup joint with the customized length to meet client's application for standard service and sour gas services.



PN 3201570 is for hammer union 2" FIG1502 with CWP 1034 bar (15000 Psi) for 2" threaded. PME hammer unions can be changeable with FMC WECO and Kemper.



For the integral adapter size 2" FIG1502 MxF, MxM, FxF, please notify the length required or PME can recommend as your request.



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Shipping PME Chiksan Flowline Fittings 2in FIG1502 Sour Gas Service and Suction Discharge Hose by 40 HQ FCL



Labor Day Holiday start from May 1, and resume on May 6. PME sales team is available to answer clients' RFQ about High Pressure Drilling Hoses and Chiksan Flowline Iron Fittings, technical parameters and purchase orders during the holiday.



Please Email: contact@pmeindustrial.com or WhatsApp: +86-13808990736 for instant support.



For the last PME shipment in April, we handover the packages of hoses and flowline fittings and load the packages into 40 HQ container. The below photos of low pressure hoses and flow back irons are partial of this batch shipment. Happy Labor Day and Wish we all have a fruitful month in May.



Cushion Elbow, 3" FIG1502 MxF

Target Tee, 3" FIG1502 MxFxF, FxMxF

Plug Valve, 2" FIG1502 MxF

Test Plug Male Cap 4" FIG206, C/W 1/2" NPT

Adjustable Choke Valve, 2" FIG1502 MxF

Oil Suction and Discharge Hose

4", WP 300 Psi, 3 Meters

Get Quality PME Chiksan Style Flowlines Plug Valve Short Radius Elbow Swivel Joint Style 30 Y Tee for Your Flowback Control Needs



Get Quality PME Chiksan Style Flowlines Plug Valve Short Radius Elbow Swivel Joint Style 30 Y Tee for Your Flowback Control Needs



PME flowlines fitting can optimize your flow control with high quality component for maximum efficiency.



Plug Valve Low Torque

Size: 2" x 2"

WP: 15000 Psi

Ends: 2" FIG 1502 MxF

Looking for dependable low torque plug valves 2" FIG1502 MxF? Trust PME quality plug valves to meet your industrial requirement!



Short Radius Elbow

90 Degree Elbow

45 Degree Elbow

Size: 2" , 3"

Streamline the oilfield processes with PME short radius elbow 90 degree and 45 degree, sized in 2" and 3".



Swivel Joint 2" FIG1502 Style 30

Swivel Joint 2" FIG1502 Style 50

Female 2" FIG1502 SCH XX BW

Male 2" FIG 1502 x Unspecified End

To improve your flowline performance with PME Chiksan Style Fitting, learn more they can service for fluid back application with durability and longevity.



X-over 2" FIG1502 FxF

Tee 2" FIG1502 MxFxM

Wyes 2" FIG1502 MxFxF

PME crossovers are used in oilfield for efficient fluid transfer. These flowline fittings can boost productivity.



Feel free to contact PME Industrial if you have request of the below items for standard or H2S Service.



Pup joints –2” x 15000 psi Fig. 1502, M x F, length 500 mm

Pup joints –2” x 15000 psi Fig. 1502, M x F, length 1000 mm

Pup joints –2” x 15000 psi Fig. 1502, M x F, length 2000 mm

Pup joints –3” x 15000 psi, Fig. 1502, M x F, length 500 mm

Pup joints –3” x 15000 psi, Fig. 1502, M x F, length 1000 mm

Pup joints –3” x 15000 psi, Fig. 1502, M x F, length 2000 mm

 Swivel joints –2” x 15000 psi, Fig. 1502, F x M

Swivel joints –3” x 15000 psi, Fig. 1502, F x M

Plug Valves – 2” x 2” x 15000 psi, Fig. 1502, M x F Union Ends

Plug Valves –3” x 3” x 15000 psi, Fig. 1502, M x F Union Ends

Elbow 90 grade –2” x 15000 psi, Fig. 1502 (M x F)

Elbow 90 grade –3” x 15000 psi, Fig. 1502 (M x F)

Y-tee –2” x 15000 psi, Fig. 1502 (M x F x F)

Y-tee –3” x 15000 psi, Fig. 1502 (M x F x F)



PME Sales Team

Tel: +86 21 5837 2350

Cell: +86 138 1899 0736

Email: contact@pmeindustrial.com

PME Flow Back 1502 Integral Union Ends Treating Iron for Fracturing, Cementing and Well Testing

 PME high pressure flow back treating iron are exchangeable with FMC Chiksan type flowline products.



PME flowback iron include high pressure fittings in 2" and 3" wing unions FIG1502 Male and Female Ends.



These treating iron such as swivel joints, plug valves, integral fitting and alloy steel adaptors are widely used for fracturing, cementing and well testing.



All flow back irons supplied by PME Industrial are delivered with pressure test report, material certificate and NDT inspection report. PME also can do third party inspection with DNV, SGS, BV or other inspection company assigned by clients.



PME offers flowline fittings and valves like plug valve, choke valve, gate valve and check valve for drilling rig workover jobs. Materials are suitable for both standard service and sour service, working pressure from 6000 Psi to 20000 psi.



PME 1502 Flow Back Iron Package

Swivel Joints

Plug Valves

Elbow, Tee, WYE

Flange Union Adaptors

Cementing and Circulating Hose Loop

API 6A Certified



Call PME today! Let us find you a solution for your flow control!
