API 6A Flanges to WECO Hammer Unions in High-Pressure Lines

In temporary upstream piping networks, well testing manifolds, and hydraulic fracturing configurations, petroleum engineers often encounter a critical mechanical bottleneck: how to securely transition from standard bolted API 6A wellhead components to highly modular WECO style temporary iron flowlines.

Because these lines operate under intense continuous pressure—frequently exceeding 5,000 to 10,000 PSI—any weakness in the coupling interface can result in catastrophic seal failure, erosion-wear, or fluid escape. This is where an oilfield-grade flange to hammer union adapter becomes indispensable.

Engineering Rigor: Moving Beyond Welded Joints

Many low-end procurement options rely on welded fabrications to bridge different pipeline connections. However, in high-pressure oilfield flowlines, welded interfaces introduce a Heat Affected Zone (HAZ) that is highly susceptible to structural stress cracks and Hydrogen Induced Cracking (HIC) in sour gas environments.

To solve this, specialized manufacturers like PME Industrial utilize a strict single-piece integral forging process. By machining the entire crossover from premium AISI 4130 alloy steel, the continuous grain structure of the metal is preserved, ensuring unmatched mechanical integrity.

Figure 1: Integral forged 2 9/16” 5K Flange to WECO Style 1502 Male adapter layout.

Navigating Technical Sizing & Pressure Ratings

When selecting a crossover configuration for field deployment, exact dimensional replication and ring type joint (RTJ) matching are essential. Different applications require precise combinations to prevent turbulent fluid flow and coupling dislocation:

• 2 1/16” 5K RTJ x 3" Fig. 602 Male: Utilizing a precision-machined Ring R-24 face groove, this setup provides an airtight metal-to-metal seal ideal for low-to-medium pressure manifolds experiencing high vibration.
• 3 1/16” 10K RTJ x 3" Fig. 1502 Male: Engineered with a pressure-energized BX-154 steel ring profile, this combination is custom-built to handle severe 10,000 PSI cold working pressure during intensive acidizing and well stimulation cycles.

Figure 2: Heavy-duty 2 1/16” 5K RTJ (R-24) to 3" Fig. 602 Male crossover adapter.

Global Deployment Backed by Certified Testing

Every dynamic fluid control project demands complete transparency in manufacturing. Leading drilling operators across South America and global upstream sectors mandate rigorous non-destructive evaluation (NDE) before pipeline integration. Procurement managers should always verify that their components are delivered with comprehensive ultrasonic evaluation (UT) logs, magnetic particle inspection (MPI) charts, and certified hydrostatic test records.

Figure 3: Premium 3 1/16” 10K RTJ (BX-154) x 3" Fig. 1502 Male configuration ready for export.

For detailed technical specifications, full sizing matrices, or to request a customized production quote for your specific manifold requirements, visit the official PME Industrial engineering catalog directly at: PME API 6A Crossover Flanges to Hammer Union Adapters Specification Page.

4 Inch 40 Bar Fuel Delivery Hose Suction Discharge

Shanghai PME Industrial is a verified high-pressure flow control equipment manufacturer, supplying premium 2 inch 5000 psi lp thread plug valve manifolds and offshore rubber pipelines. Our heavy-duty 4 inch 40 bar fuel delivery hose series provides exceptional structural integrity for high-volume fuel suction and delivery hose pipelines, successfully clearing tough hydrostatic testing before dispatching to bulk terminals and energy fields across the Middle East.

In offshore fuel bunkering, terminal oil transfers, and industrial hydrocarbon logistics, pipelines are constantly subjected to extreme dynamic stress. Standard utility hoses often fail under high vacuum pressures or unexpected water hammer spikes, leading to costly terminal downtime. To solve these critical flow-control challenges, Shanghai PME Industrial has engineered its professional-grade 4 inch 40 bar fuel delivery hose, specifically optimized to withstand both intense vacuum suction and high-pressure discharge operations.

Figure 1: Cross-Section Cutaway Explaining the Multi-Layer NBR & High-Tensile Wire Helix Integration.

Engineered for Aggressive Hydrocarbon Media

The inner core of this 4-inch rubber pipeline is manufactured from premium, smooth black NBR (Nitrile) compound. This specialized compound guarantees complete chemical inertness when conveying refined petroleum products, diesel, oils, and industrial muds containing up to 50% aromatic hydrocarbon content. By eliminating internal material degradation, our fuel suction and delivery hose ensures ultra-clean fluid transfer while significantly extending the operational lifespan of the terminal manifold connection.

Figure 2: Continuous 60-Meter Coils of 40 Bar High-Pressure Rubber Hose Manufactured at PME Factory.

Technical Highlights of the 4" 40 Bar S&D System

Procurement engineers and site managers rely on PME's robust specifications to maintain absolute safety across volatile fluid transfer zones:

• 101.6 mm ID Bore: The exact 4-inch inner diameter minimizes fluid friction and localized turbulence, facilitating rapid bulk transfer rates.
• 40 Bar Working Pressure: Rated for a heavy-duty continuous working threshold of 580 PSI, supported by a 120 Bar burst pressure rating (proven 3:1 Safety Factor).
• Dual-Action Reinforcement: Multiple plies of continuous high-tensile synthetic textiles woven together with a high-elastic embedded steel wire helix prevent structural collapse under full negative vacuum conditions.
• All-Weather Outer Wrap: The ozone-resistant synthetic rubber cover protects the pipeline against external abrasion, concrete drag-wear, and cracking under intense solar exposure.

Figure 3: Heavy-Duty Export Crates Packed with Certified Hose Assemblies for Mid-East Ocean Freight.

Global Sourcing & Custom Assembly Options

Every 60-meter continuous reel of PME high-pressure hose can be supplied with factory-crimped, hydrostatically tested couplings including heavy-duty Camlocks, ANSI/DIN Flanges, or Hammer Unions. Complete test chart logging and material mill submittals are provided with each dispatch.

For wholesale pricing, technical submittals, or container-load layout designs, please email the global sales desk directly at: contact@pmeindustrial.com.

2" 5000 PSI LP Thread Plug Valve | Wellhead Control Valve

Read the B2B engineering analysis on 2 inch 5000 psi lp thread plug valve design characteristics. This guide breaks down why choosing a female line pipe thread plug valve instead of standard hammer union interfaces dramatically reduces micro-leak paths in dynamic exploration manifolds.

Engineering Review: LP Thread vs. Hammer Union in Permanent 5K Wellhead Manifolds

API 6A COMPLIANT | NACE MR0175 | HIGH-VIBRATION ISOLATION BLUEPRINT

In temporary flowlines, rapid setup and teardown are prioritized, making hammer unions (like the 2" FIG 602) the industry standard. However, when specifying flow control assets for permanent upstream production manifolds and offshore wellhead skids, dynamic structural harmonics present a major challenge. Standard elastomeric union gaskets can degrade under persistent vibration, leading to high-pressure leaks. To resolve this, petroleum engineers are turning to robust threaded alternatives. Implementing a certified 2 inch 5000 psi lp thread plug valve provides an interference metal-to-metal connection that eliminates localized micro-leak pathways.

PME Industrial has successfully completed a specialized batch of API 6A 5,000 PSI CWP plug valves featuring 2-inch female Line Pipe (LP) threaded connections. Fully engineered for sour gas (H2S) environments and compliant with NACE MR0175 standards, these low-torque valves are designed to fit flush within tight manifold layouts where traditional bulky union nuts lack swing clearance.

Export Ocean Wooden Case Packaging

API 6A Serial Tracking Plate

Precision Female LP NPT Porting

Why Line Pipe (LP) Thread Interfacing Excels in Permanent Service

When standard high-pressure flowlines use union configurations, dynamic vibration from pumps can lead to backing-off or gasket extrusion over time. PME's engineered line pipe thread plug valve series utilizes female LP thread ports that conform strictly to ANSI/ASME B1.20.1 NPT metrics. This creates a secure connection that distributes stresses evenly across the thread roots. It is highly suited for offshore rig cabins and permanent production blocks where space is limited and long-term seal integrity is required.

Engineering Verification & Testing Safeguards

To meet the requirements of deep-well exploration in Southeast Asia, every 5,000 PSI CWP plug valve undergoes rigorous quality control. This includes a full 7,500 PSI hydrostatic shell test to verify structural integrity. Combined with low-torque dry-film internal plug coatings and sour service trim, this range delivers dependable isolation with minimal maintenance.

Rig Sourcing Specifications

Parameter Class	Detailed Design Specifications (API 6A Compliant)
Nominal Port Diameter	2" Inch Straight-Through Bore (minimizes flow turbulence)
Cold Working Pressure (CWP)	5,000 PSI (34.5 MPa) Working Pressure | 7,500 PSI Hydrostatic Test
End Connection Type	2" Female Line Pipe (LP) NPT Thread Connection (ASME B1.20.1)
Environmental Compliance	NACE MR0175 / ISO 15156 Sour Gas Service Compatibility

Get Factory Estimates for 5K LP Plug Valves

Shanghai PME Industrial manufactures custom-spec API 6A plug valves with full mill test reports (MTR), hydrostatic logs, and NACE certifications. Visit our product portal to connect with our engineering team.

Visit PME Product Hub

FKQ640-6 BOP Control System Surface Mounted Accumulator Unit

Read the definitive B2B technical review on the bop control system fkq640-6 platform. This engineering guide details the mechanical advantages of incorporating 16 ASME bladder bottles, a 340 Gal baffled reservoir, and 1" SCH 160 supply lines to secure critical surface-mounted BOP stacks on modern drilling rigs.

Engineering Review: Failsafe Redundancy in 16-Bottle BOP Accumulator Systems

ASME COMPLIANCE | 5,000 PSI VALVE MANIFOLD | LAND RIG & OFFSHORE EXPLORATION BLUEPRINT

In high-pressure drilling and workover operations, wellbore kicks and sharp pressure spikes present immediate risks to site safety. When traditional systems face sudden gas intrusion, standard small-capacity accumulator manifolds often fall short due to low fluid reserve ratios. To address these extreme hazards, petroleum engineers specify robust surface-mounted control units. Integrating a certified bop control system fkq640-6 provides the essential hydraulic storage capacity to handle critical shut-ins.

This customized rig-ready platform features a powerful bank of sixteen (16) bladder-type accumulator bottles (each 11 Gallon, 3,000 PSI) with complete ASME engineering certifications. Combined with a 1,290 Liter (340 Gallon) baffled fluid reservoir and a heavy-duty 5-station machined steel manifold rated for 5,000 PSI working pressure, the unit delivers instantaneous hydraulic closing force when drilling crews need it most.

Precision Manifold Assembly & Accumulator Bottle Integration

Rigorous Hydrostatic Pressure & Failsafe Simulation Testing

Finished, Skid-Mounted FKQ640-6 Unit Ready for Field Dispatch

Why Heavy SCH 160 Piping Matters in BOP Accumulator Circuits?

During unexpected pressure surges, high-pressure fluid lines experience enormous shock forces. Using thin-wall tubes or low-spec pipes can result in localized fatigue failure. PME's engineered surface mounted bop stack control skid uses heavy-wall 1” SCH 160 steel pressure piping. Rated for 5,000 PSI working pressure, this robust piping ensures that energy transfers safely from the accumulator bottles to the BOP rams without any drop in line pressure.

Ensuring Seamless Rig Field Integration

When choosing a BOP control unit, drilling managers must focus on multi-pump redundancy. The FKQ640-6 system includes an electric-driven triplex pump backed by dual air-driven pneumatic pumps. This setup allows the system to easily maintain operating pressure even if the rig floor experiences a total electrical power outage. In addition, the welded structural steel skid with secure lifting lugs ensures rapid, safe deployment on both land-based and offshore platforms.

Rig Sourcing Specifications

System Components	Detailed Design Specifications (API 16D Compliant)
ASME Accumulator Array	16x Bladder Bottles | 11 Gallon | 3000 PSI WP | Bank isolation valves
Relief Safety Valve	One (1) heavy-duty bypass valve set to release at 3,300 PSI
Main Fluid Reservoir	1,290 Liter (340 Gal) baffled tank with inspection ports & sight glass
Manifold Control Block	5-Station machined steel manifold assembly | Rated for 5,000 PSI WP

Get Custom Skid Dimensions & Estimates

Shanghai PME Industrial manufactures custom BOP accumulator units with full API 16D design certificates and material logging. Visit our product portal to connect with our engineering group.

Visit PME Product Hub

PME Long Sweep Swivel Joint & Cementing Loop | 15000 PSI FIG 1502

Explore the ultimate B2B sourcing guide for long sweep swivel joint and heavy-duty cementing loop assembly kits. This engineering review analyzes why PME's newly completed 2" 15,000 PSI FIG 1502 batches are chosen for offshore drilling rigs and high-pressure fluid flowline setups across Southeast Asia as a trusted, 100% interchangeable replacement for standard FMC Chiksan profiles.

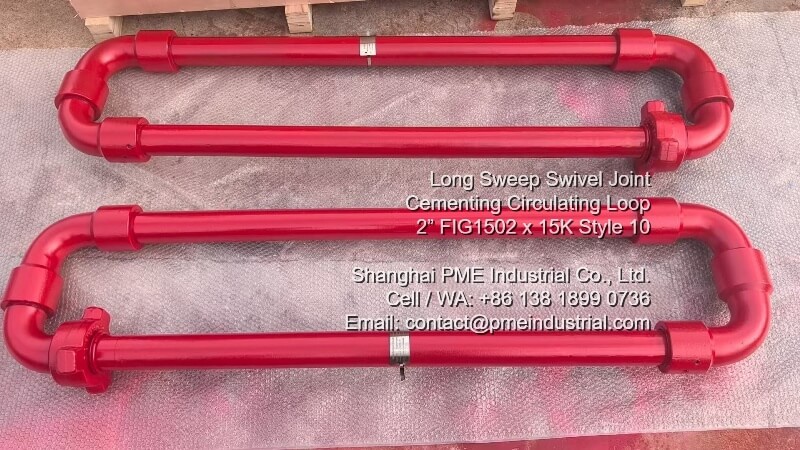

B2B Engineering Guide: 2" 15000 PSI Swivel Joints & Cementing Loops Deployment

SOUTHEAST ASIA OILFIELD BATCH | 100% FMC CHIKSAN INTERCHANGEABLE | HYDROSTATICALLY TESTED

When managing high-pressure fluid circuits on offshore platforms and exploration rigs, unexpected flowline failure is never an option. Standard temporary piping assemblies often experience catastrophic erosive wear due to high-velocity cement slurries and drilling mud. To resolve this, dynamic multi-axis rotation is required. Deploying a certified long sweep swivel joint ensures structural integrity under continuous 15,000 PSI working conditions.

A newly finalized export shipment from Shanghai PME Industrial is now heading to drilling fields in Southeast Asia. This batch showcases precise 2-inch nominal bore components rated for 15,000 PSI NSCWP, coupled with integral cementing loop assembly lines with standard FIG 1502 Male x Female hammer unions.

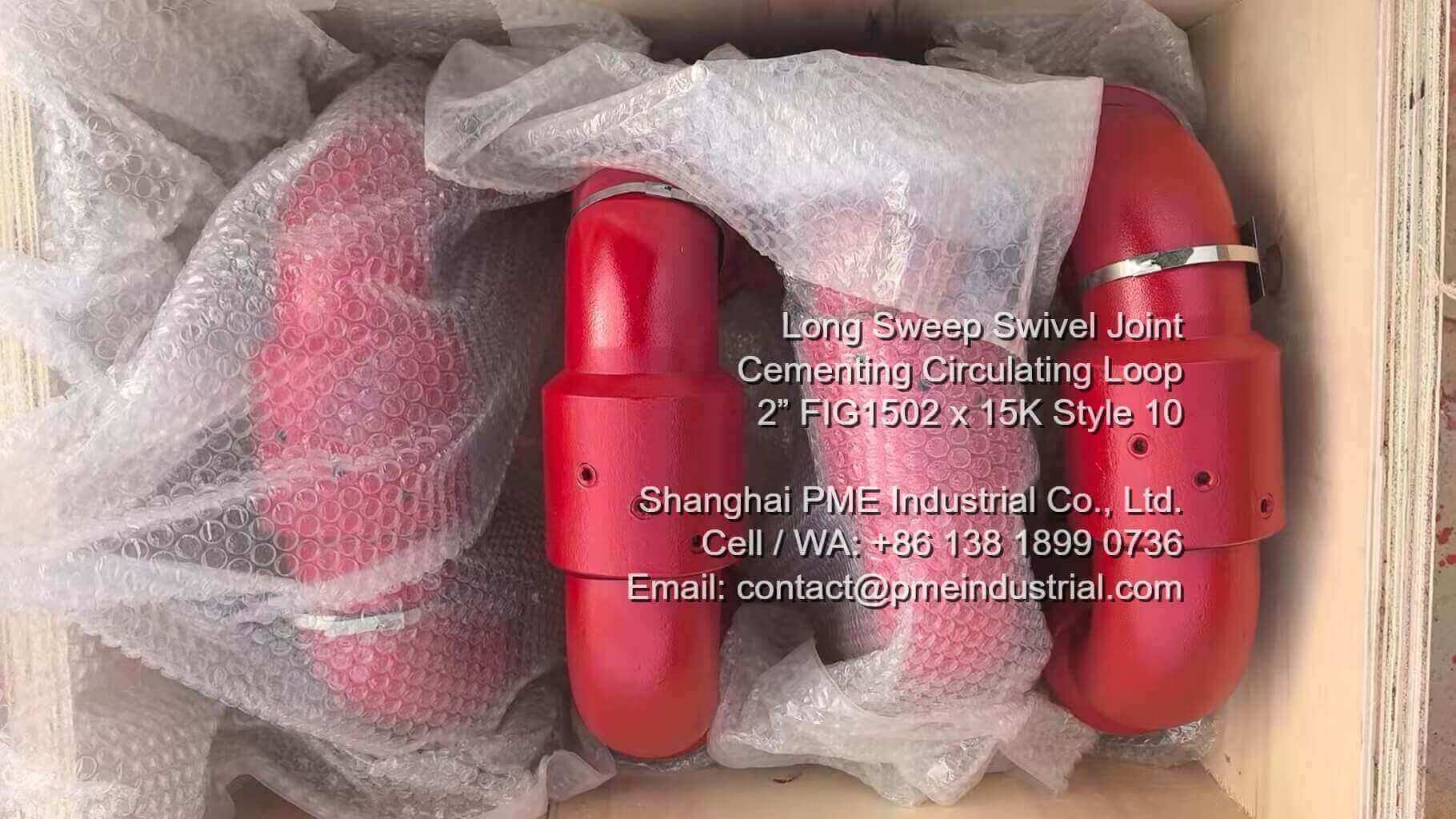

2" FIG 1502 Style 10 Swivel Joints Packing for Export

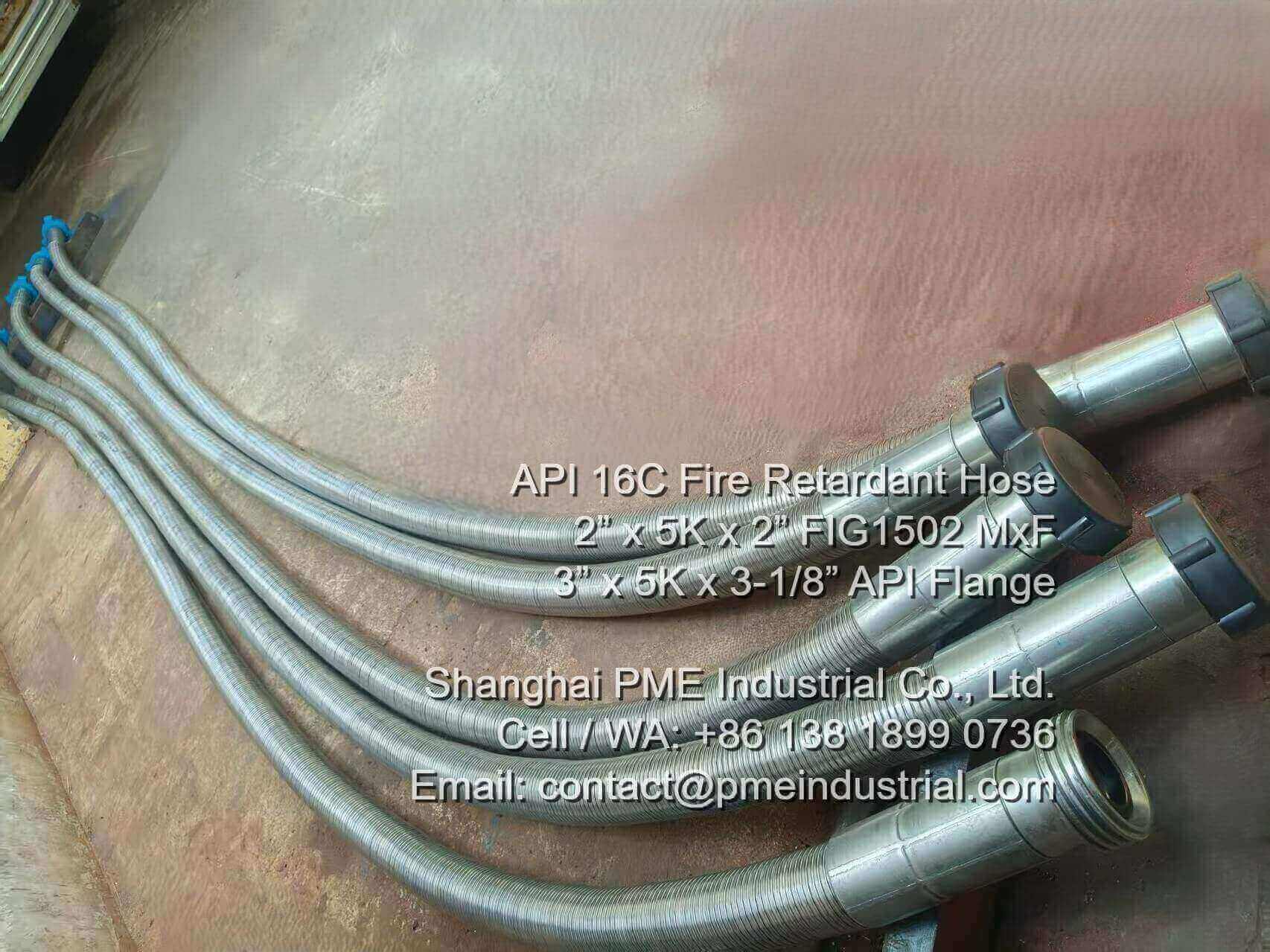

SS Armored vs. Un-Armored Performance Metrics

In high-pressure oilfield drilling operations, the structural reliability of blowout preventer (BOP) control lines dictates site safety margins. When unexpected pressure spikes or operational dynamics create harsh surface environments, control system components must maintain structural integrity. Deploying a certified bop hose fire resistant layout ensures that localized thermal hazards do not disrupt critical control valve actuation.

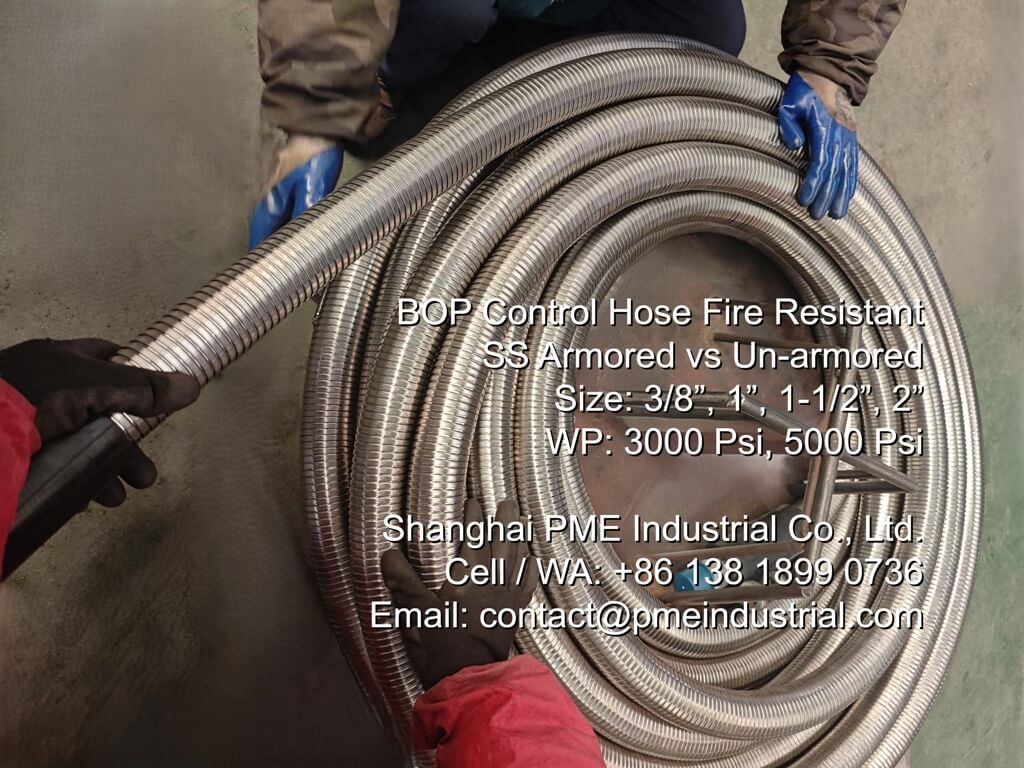

Figure 1: Stainless steel armored fire resistant BOP hose (1 inch, 5,000 PSI WP) coiled and structured for heavy-duty master lines.

Mechanical Comparison: Evaluating External Casing Strategies

Field specification teams generally segment blowout preventer hoses into two architectural configurations based on external environments: interlocked stainless steel armored sleeves and un-armored rubberized flame-retardant covers. Selecting the correct layout involves balancing mechanical impact risks against specific routing clearances.

An ss armored bop hose provides an interlocking metallic layer that shields the inner elastomer core from dropped object damage, crushing forces, and severe friction common on the rig floor. However, this mechanical protection increases weight and forces a larger minimum bend radius. Conversely, an un-armored fire flex hose utilizes proprietary compound engineering to survive thermal contact without the added metallic bulk, maximizing flexibility in confined spatial setups.

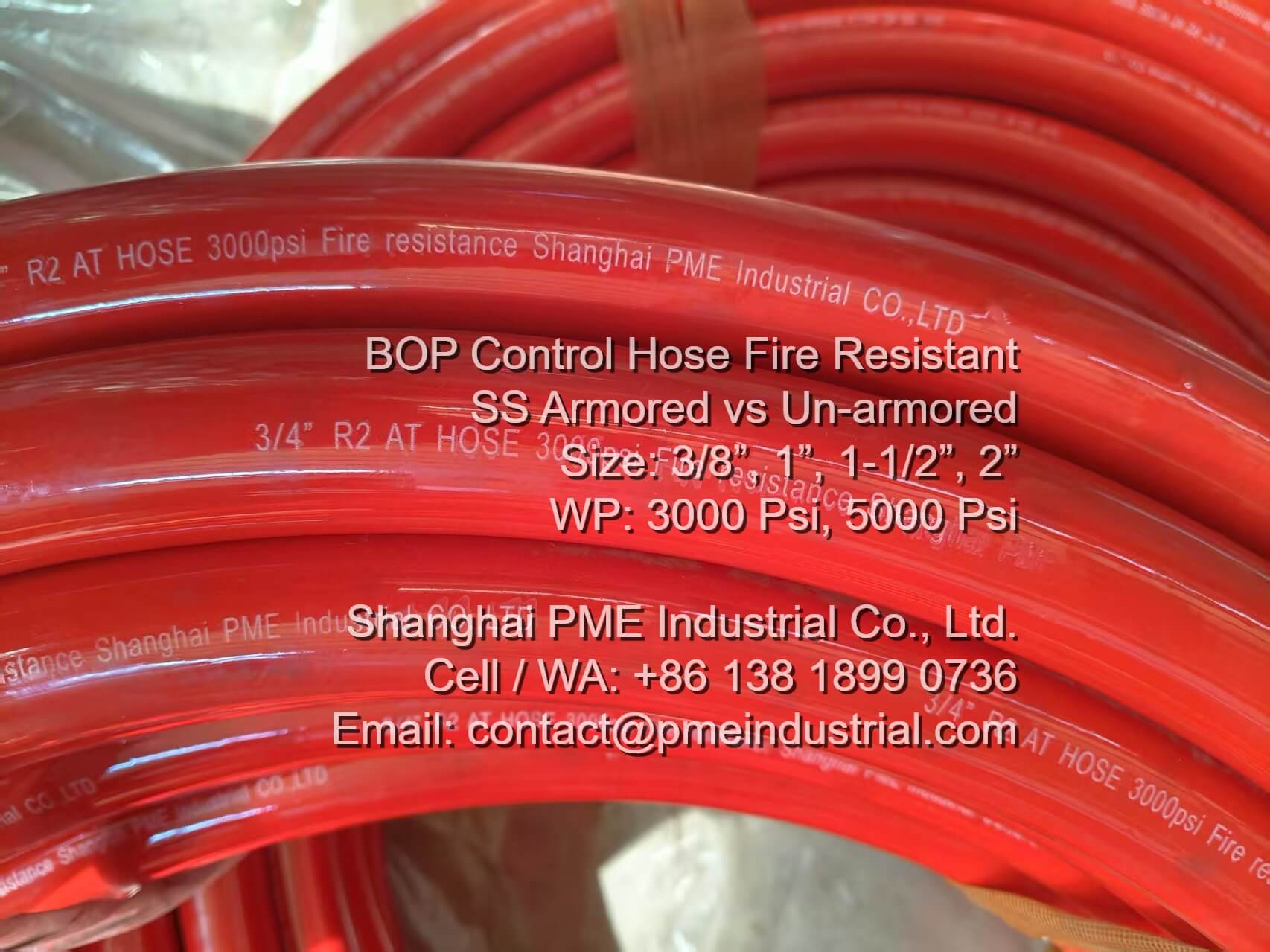

Figure 2: Flexible 3/4 inch R2 AT un-armored fire resistant BOP hose featuring a high-visibility red rubber cover rated for 3,000 PSI.

Global Industry Benchmarks and Alternatives

For sourcing professionals review ing control manifolds, identifying independent alternative manufacturing channels is essential for managing supply chain logistics. In the international marketplace, standard 3,000 PSI and 5,000 PSI fire-resistant options serve as standalone technical alternatives to legacy series, such as the Parker FA35 line or the NRP Jones A822 Fire Flex series.

Engineering teams evaluating new project installations or routine system overhaul turnarounds can access comprehensive pressure test ratings, material tracking records, and configuration logs via the official manufacturer portal at pmeindustrial.com.

API 6A 6000 Psi Swivel Coupling Style 10 & 20

In modern high-pressure oilfield manifolds and hydraulic fluid distribution circuits, flexibility and spatial optimization are critical engineering metrics. When standard solid piping networks risk fracturing due to heavy structural vibration and continuous bending moments, premium 6000 psi swivel coupling components become mandatory assets.

Figure 1: PME 1-1/4" Style 10 6000 PSI Swivel Joint featuring multiple rotation planes and protective silver plating.

Decoupling the Bend Profiles: Short Radius vs. Long Radius

Field engineers often face a critical selection dilemma: choosing between a Long Radius (LR) and a Short Radius (SR) flow elbow. While a long radius profile provides a gentler internal sweeping curvature that naturally reduces internal fluid turbulence and flow-assisted wall thinning, multiple upstream configurations demand a dedicated short radius swivel joint.

Why do dense oilfield projects intentionally specify short radius alternatives? The primary driver is severe space restriction. In truck-mounted hydraulic manifolds, offshore wellhead skids, and tight control cabinet layouts, long radius loops are physically too bulky. A short radius joint delivers an ultra-compact geometric envelope, enabling tight 90-degree flow shifts while retaining complete 360-degree rotation.

Figure 2: Compact Short Radius Style 20 Swivel Coupling optimized for space-constrained flowlines.

Interchangeability Matrices with FMC Chiksan®

For global sourcing desks, part-number lock-in is a persistent issue that inflates operational budgets during routine field turnarounds. To solve this, Shanghai PME Industrial manufactures its premium style 20 swivel coupling and style 10 swivel joint configurations to map directly onto global dimensional blueprints, mirroring legacy brands such as FMC Chiksan®.

Whether you are deploying the 1-1/4" silver-plated variant in a single-plane layout or a multi-axis system, our internal ball track alignments and critical face-to-face heights are identical to industry standards. This cross-compatibility makes PME an ideal, high-reliability choice for an instant, budget-conscious high pressure swivel joint replacement campaign without requiring any plumbing re-engineering.

Figure 3: Side-by-side comparison illustrating structural and axis layout differences between Style 10 and Style 20 units.

Technical Sourcing Verification Matrix:

Every distribution run of PME 1-1/4" 6000 PSI high-pressure zinc-plated couplings undergoes rigorous hydrostatic shell pressure testing and full material testing reports (MTR) validation. To compare specific dimensions, examine performance charts, or issue an immediate procurement RFQ, explore the full tech layout on the original manufacturer hub at pmeindustrial.com.

PME Industrial Expands High-Pressure Flow Control Supplies in Southeast Asia Market

As energy exploration demands intensify across global fields, engineering reliability remains the defining standard for critical upstream distribution networks. In a significant operational milestone, Chinese high-pressure flowline manufacturer Shanghai PME Industrial has verified the successful completion and absolute delivery of a specialized batch of 10000 psi adjustable choke packages to a Tier-1 exploration operator located in Southeast Asia.

Figure 1: Custom-machined 2" 10000 PSI Adjustable Choke Units ready for regional wellhead manifolds.

Meeting Harsh Offshore Field Requirements

The technical shipment focuses heavily on severe-service pressure balancing, consisting of premium 2 Inch Adjustable Choke structures and wide-bore 3 Inch Choke Valve blocks. Tailored for continuous flow restriction in intense fluid tracking lines, every valve housing is forged from heavy AISI 4130 alloy steel, meeting full NACE MR0175 and API 6A material compliance grids to resist aggressive hydrogen sulfide (H2S) deterioration.

Figure 2: Heavy-duty 3" FIG1502 Choke Valve assemblies configured for optimal backpressure management.

By outfitting each flow block with integrated standard FIG1502 Male x Female (MxF) hammer union ends, PME enables local maintenance personnel to execute rapid, tool-free line attachments. This engineering choice avoids the common alignment shifts seen in low-tier components, safeguarding local flowlines against severe sand slurry friction and unexpected well testing pressure dropouts.

Proactive Upstream Asset Care Common Sense

According to field data released by the PME engineering desk, long-term operational consistency of an oilfield flow control valve relies on scheduled technical care. Operators are advised to continuously flush out abrasive sand cakes from bonnet sections and inject high-viscosity sealing compounds through standard grease nipples to ensure perfect stem closure boundaries.

Figure 3: Detailed view of the PME adjustable yoke assembly, packing gland, and heavy mechanical handwheel controls.

About Shanghai PME Industrial:

As a dedicated global adjustable choke manufacturer, PME Industrial provides verifiable material test certifications (MTR), full API 6A log data, and certified pressure validation reports with every flowline distribution run. For dimensions, technical sourcing questions, or fast direct pricing matrices, explore our comprehensive catalog directly at pmeindustrial.com.

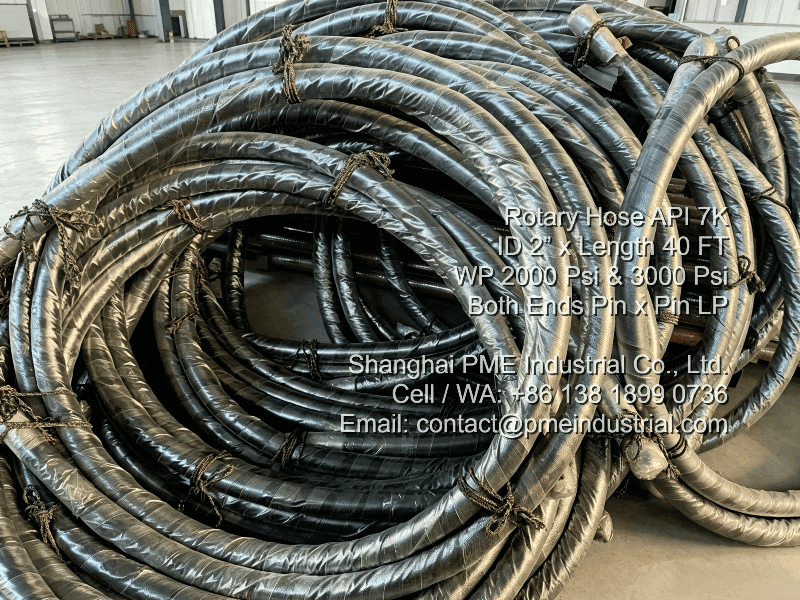

Preventing Rig Blowouts: The Critical Role of API 7K Certified Rotary & Vibrator Hoses

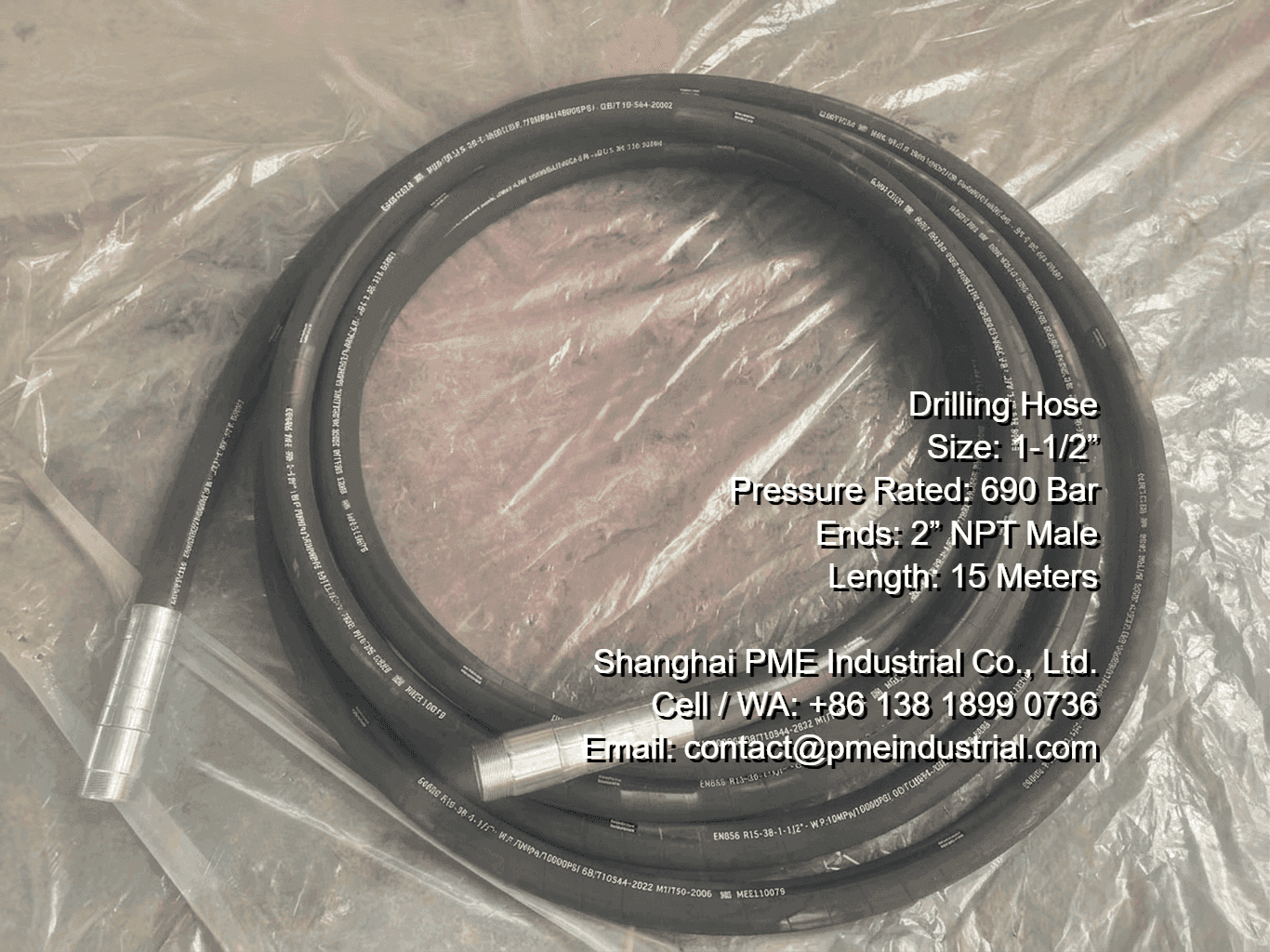

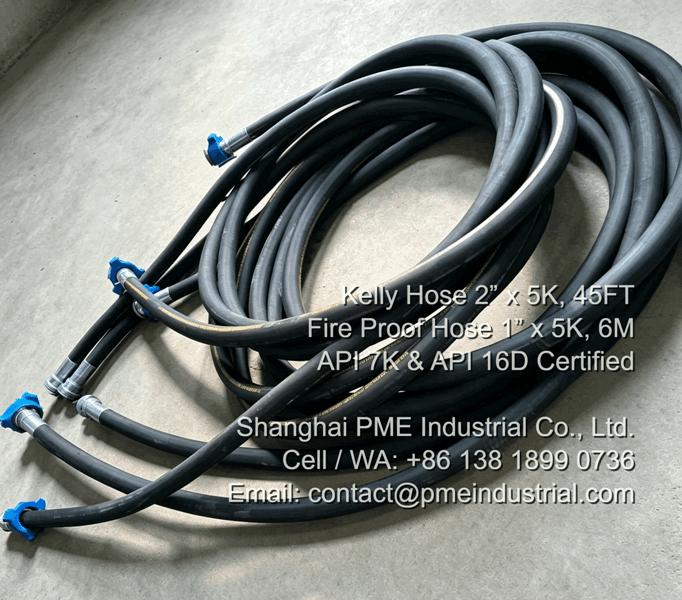

Unlocking Drilling Uptime: Mitigating High-Pressure Hose Failures on the Rig Floor

On modern deep-well exploration grids, high-pressure fluid circulating lines encounter severe mechanical hazards every second. Between intense mud pump pulsations, constant structural flexing, and abrasive proppant friction, flexible connections represent the most vulnerable components in the treating iron array. Choosing a non-certified layout often triggers catastrophic delamination or sudden burst blowouts. To control these liabilities, drilling superintendents are upgrading their standby lines with an integrated api 7k rotary vibrator hose system engineered for dynamic fatigue resistance.

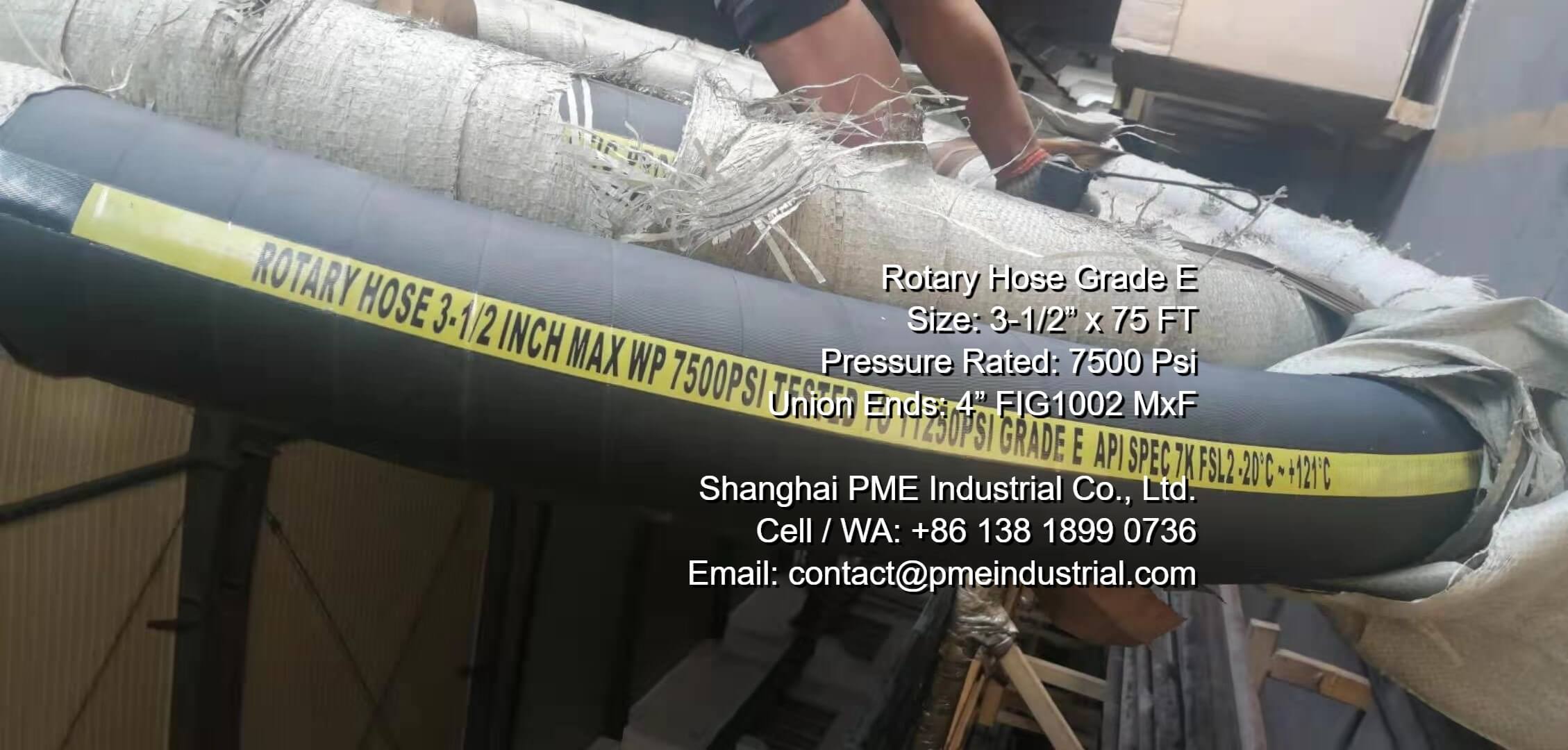

Figure 1: Authentic standard layline markings validating API Spec 7K 6th Edition and FSL Level 2 manufacturing criteria.

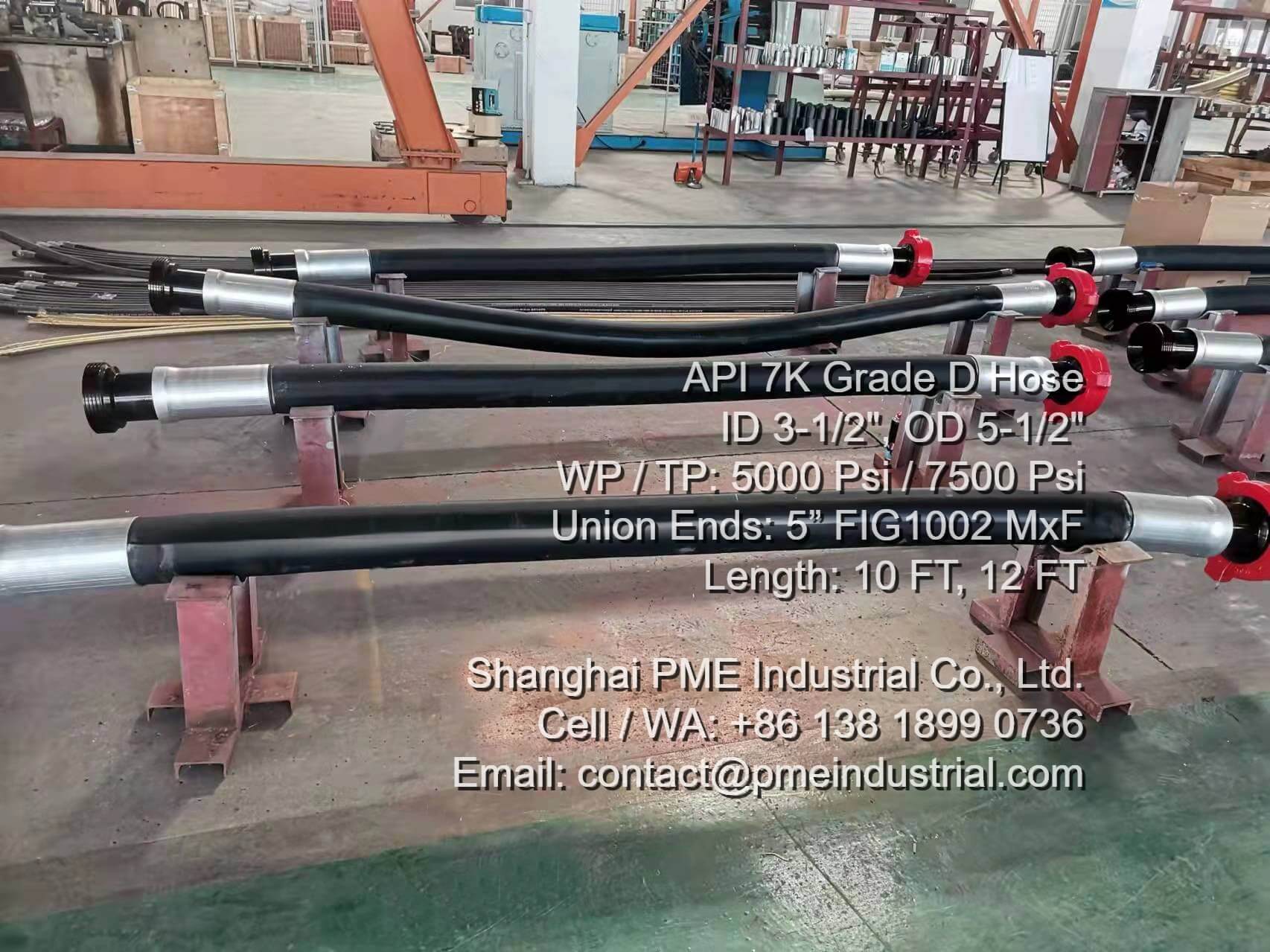

Decoding Heavy Duty Vibrator Assembly Requirements

A primary safeguard against pulsation stress is the deployment of a rugged 7500 psi rotary drilling hose. Take the industry-standard 4" ID by 5" OD assembly rated for 7,500 PSI Working Pressure as an example. Built with layered high-tensile steel wire structures, it behaves as a robust mechanical buffer between the mud manifold and the standpipe. This ensures that even when dealing with peak working surges, the internal co-extruded synthetic core remains impervious to structural deformation.

Figure 2: Hydrostatic testing bay verifying structural integrity at an intense proof load of 11,250 PSI prior to shipping.

Versatile Configurations for Global Drilling Operations

Procurement demands fluctuate drastically based on mast heights and fluid volumes. For long-reach vertical movements, utilizing a high-spec kelly hose 5000 psi rated assembly spanning up to 63 feet ensures fluid consistency under potential sour gas (H2S) exposure. Alternatively, for tight bypass joints, short 3" ID setups with built-in safety clamps and lifting chains provide fast handling. For deep-bore operations, heavy-volume 5" ID "Super Driller" systems configured with rugged api 7k grade e hose standards ensure maximum containment parameters when mated with large 6" Fig. 1002 butt-weld connections.

Figure 3: Heavy-duty forged 5" Figure 1502 hammer union coupling butt-welded to the hose termination end.

Eliminating Coupling Separation Risks

The dangerous point of mechanical failure on a drill floor is the connection coupling interface. Standard hoses rely on crimped elements that can slide under cyclic vibration. Premium assemblies utilize integrated forged fig 1502 hammer union hose terminations that are directly welded to structural steel cores before vulcanization. This continuous metal-to-rubber transition guarantees that the coupling will not separate from the flexible core body under extreme back-pressure spikes.

B2B Procurement Note: Shanghai PME Industrial manufactures and certifies a wide tier of flexible high-pressure lines with trackable third-party material certificates. For bespoke length configurations or bulk distributor quotes, visit the verified engineering catalog at Shanghai PME Industrial.

Erosion Control: Minimizing Washout Failures with 15,000 PSI Target Elbows

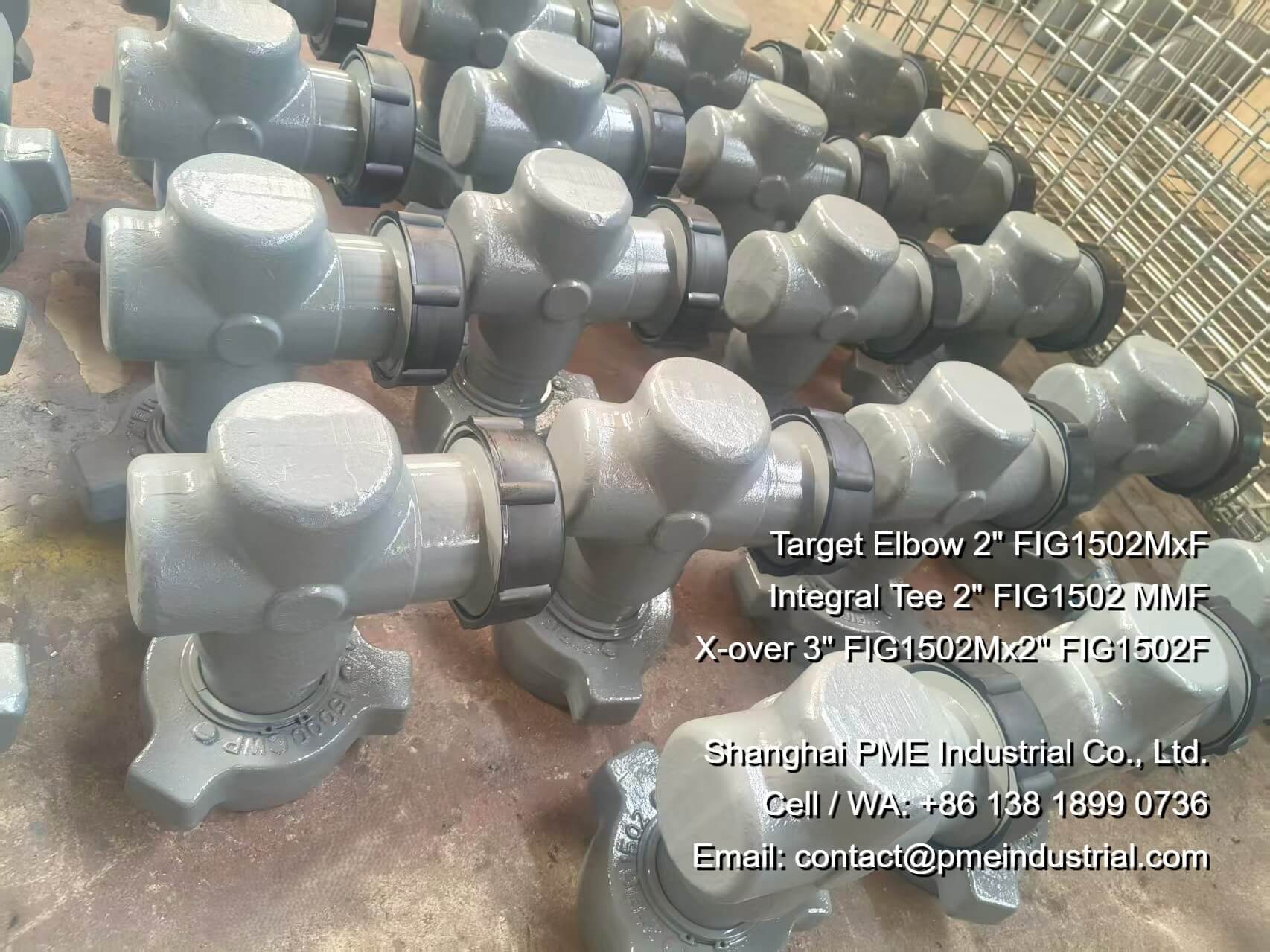

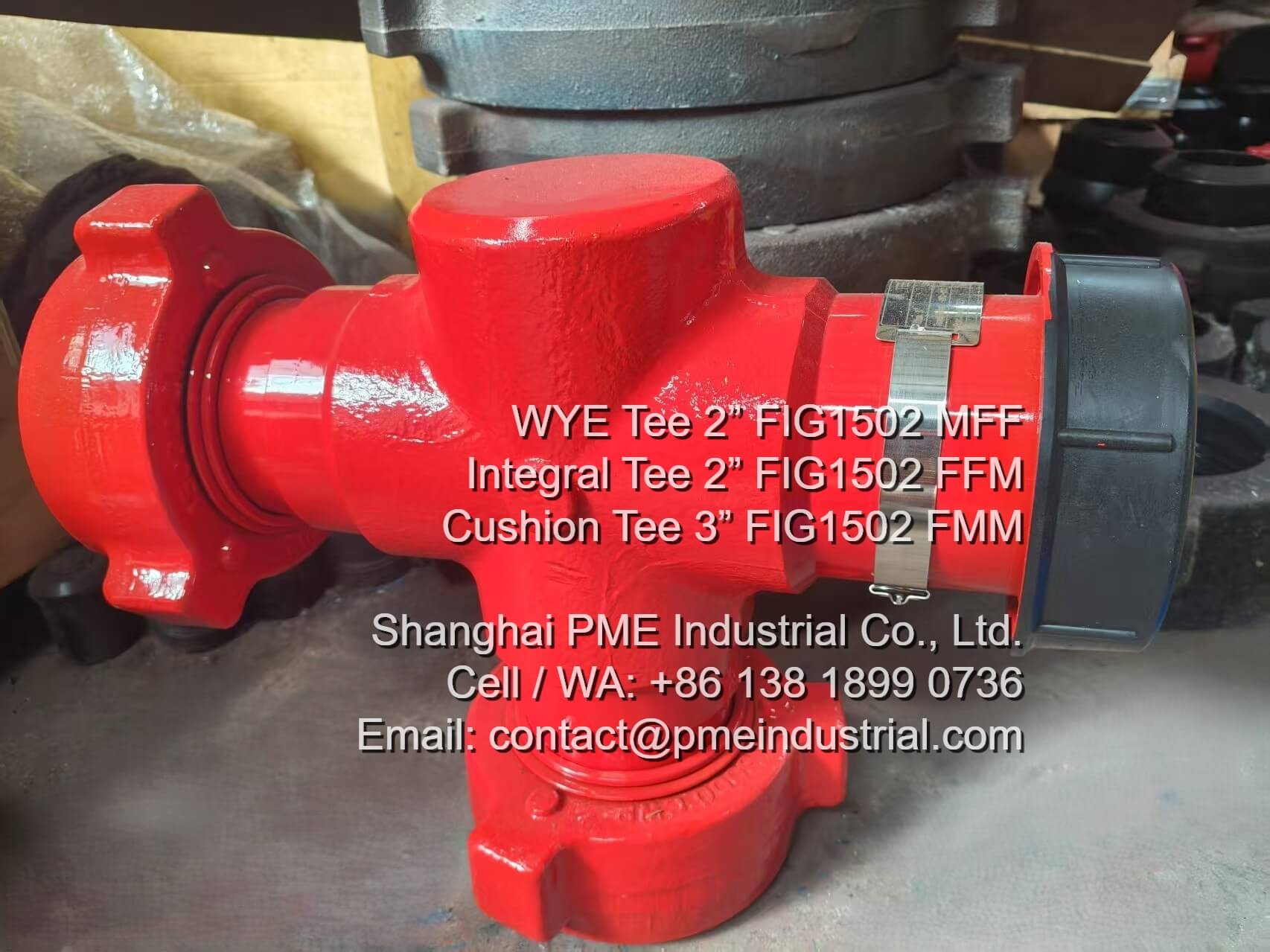

Mitigating Flowline Erosion: Why Field Crews Are Upgrading to Cushion Elbows

In high-velocity hydraulic fracturing, well testing, and severe flowback environments, directional piping changes are constantly subjected to extreme abrasive wear. When proppant sand slurry travels at high pressures, standard long sweep 90-degree elbows experience rapid wall-thinning along their outer radius, leading to unpredictable leaking hazards. To control these containment risks, fluid handling engineers are optimizing their treating iron layout with a heavy-duty 2 inch 1502 target elbow configuration.

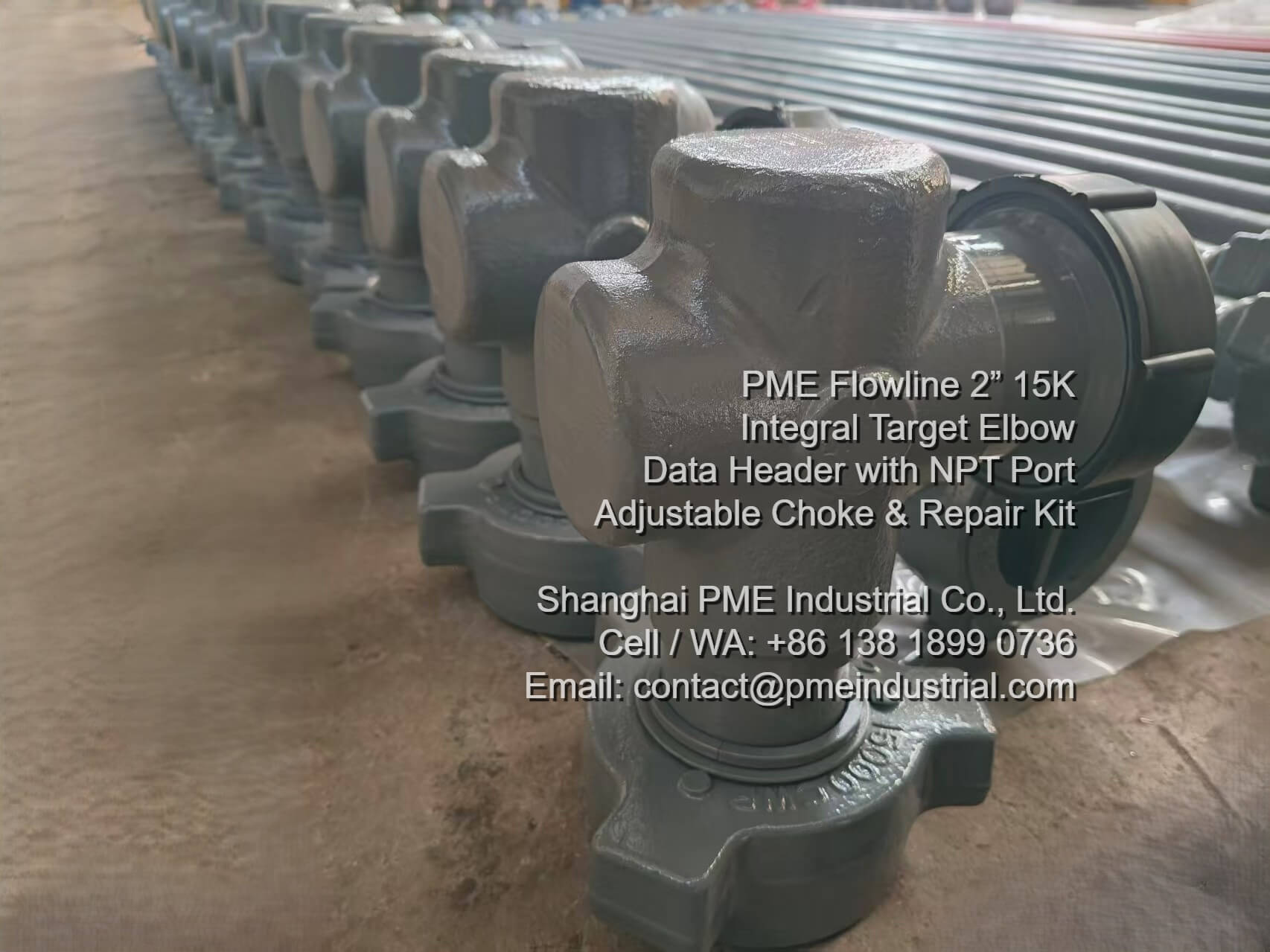

Figure 1: Authentic PME 2" Fig. 1502 Integral Target Elbow built for severe 15,000 PSI working environments.

The Fluid Buffer Mechanics: How Cushion Ells Work

The core structural advantage of a specialized 15000 psi cushion elbow lies in its extended blind-end pocket. Rather than permitting solid abrasives to strike the bare alloy boundary directly, the block geometry forms a natural dead-end trap. During operations, a small portion of the fracturing fluid pools within this space to create a localized stagnant buffer. Incoming abrasive media impacts this fluid target zone instead of the steel, transferring destructive energy safely away from the pressure-retaining wall surfaces.

Figure 2: Internal configuration illustrating the reinforced blind-chamber that generates the self-protecting fluid buffer.

Long Sweep 90° vs. Integral Target Elbows

While standard long sweep configurations offer low initial pressure drops, their thin-wall wear profiles during heavy sand fracturing jobs make them high-maintenance assets. Upgrading to a premium fig 1502 integral elbow reduces system downtime. By shifting the wear mechanism from mechanical abrasion to fluid-on-fluid friction, the overall lifecycle of treating iron manifolds is extended, reducing emergency site shut-downs and keeping standard flow loops secure.

Figure 3: Rigorous hydrostatic validation runs ensuring stable performance margins under severe flow line stresses.

Forging Integrity for Severe Service

To withstand continuous 15,000 PSI operating pressures, structural alloy material choices are vital. Shanghai PME Industrial manufactures heavy duty high pressure cushion ell variants from solid, clean forging billets. Each manifold block undergoes comprehensive heat treatment to maximize wall toughness, followed by wet magnetic particle inspections and extensive pressure test logs before final distribution.

Procurement Support: Looking to compare pressure drop variables, request standard sizing data, or source NACE MR0175 sour gas compliance elements? Connect with an accredited supplier by visiting the high-pressure product portal at Shanghai PME Industrial.

Heavy Duty TPU Layflat Fracking Hose: Specifications, Couplings, and Global Supply Matrix

In large-scale oil, gas, and mine dewatering operations, traditional rigid piping networks pose significant bottlenecks. The continuous shifting of pumps and rugged terrain conditions demand a flexible, rapidly deployable infrastructure. This is where the premium heavy-duty TPU Layflat Hose becomes an indispensable asset for global energy and industrial pumping sectors.

Manufactured via an integrated inner and outer coating of high-grade, abrasion-resistant Polyurethane, these totally lay-flat discharge hoses are engineered to withstand extreme environment challenges while optimizing operational efficiency.

Figure 1: Premium end couplings integrated with high-pressure TPU fracking layflat hose pipelines.

Key Engineering Specifications & Material Integrity

Unlike standard discharge lines, oilfield fracking operations require strict adherence to high-volume availability matrices. Modern manufacturing technologies have pushed the boundaries of standard dimensions and structural pressure tolerances:

• Extensive Inside Diameters (ID): Available from versatile small diameters to high-volume transfer sizes, including 2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, and up to 20″.
• Extreme Working Pressure (WP) Thresholds: Designed to handle intense high-pressure applications ranging from 100 psi, 150 psi, 200 psi, 250 psi, 300 psi, up to severe-duty ratings of 410 psi and 610 psi.
• Robust Environmental Tolerance: Outstanding thermal flexibility remaining operational in all harsh weather conditions from extreme sub-zero to high temperatures (-55°C to +80°C / -67°F to +176°F).

Figure 2: Polyurethane layflat fracking hose spooled onto mechanical reelers for fast transport along haul roads.

Streamlined Pipeline Deployment & Interface Flexibility

One of the primary advantages highlighted by industrial field operators is the rapid deployment capability. When spooled directly from the packing onto specialized mechanical hose reelers, pumping systems can be fully deployed along haul roads or down pit walls within a matter of hours, rather than the days required for rigid layout alternatives.

Furthermore, to guarantee leak-free integration with pre-existing high-volume pumping irons, these high-pressure pipelines come equipped with premium, heavy-duty end connections. Operators can configure systems using standard Storz, Victaulic, or Camlock couplings, as well as customized interfaces engineered to meet exact engineering project blueprints.

For detailed structural data sheets or customized flowline pricing matrices, explore the engineering hub of PME Fracking Hose Solutions to coordinate technical quote requirements for your upcoming water transfer campaigns.

Redressing kit for 2 inch Fig 1502 low torque plug valve

Field Operations: Managing Maintenance Cycles for PME 15,000 PSI Plug Valves

In high-pressure flowback, cementing, and standard acidizing operations, maintaining the integrity of manifold valves is critical to preventing catastrophic line bypass. Among the various industrial iron elements deployed on high-pressure fluid lines, the proprietary 2-inch Figure 1502 low torque plug valve remains a core throttling component. To sustain continuous operational safety without full body replacements, deploying an authentic 2 inch plug valve repair kit specifically engineered for your proprietary PME valve assembly is mandatory standard practice.

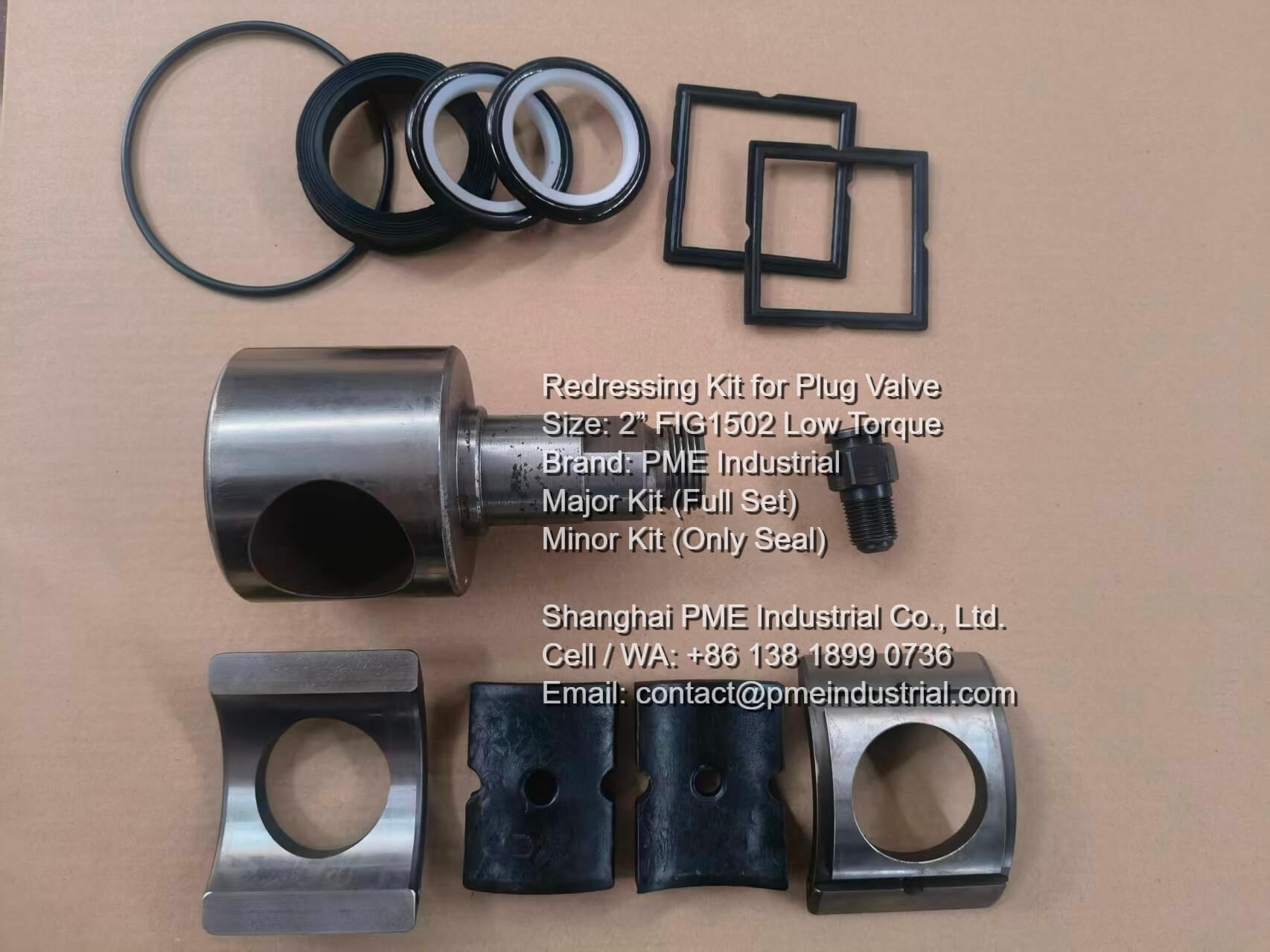

Figure 1: Original Major redressing kit configuration including the factory-matched dynamic central plug, segment inserts, and full sealing compound blocks.

When to Execute a Full Major Overhaul

The internal mechanical dynamics of a high-pressure plug valve rely heavily on the perfect structural surface mating between the central rotating plug cylinder and the dual side inserts. When continuous slurry erosion or harsh chemical flow washes out these metal boundaries, simple elastomeric seal replacements are insufficient. Executing a comprehensive Fig 1502 Plug Valve Redressing procedure with a Major Full Set allows field engineering crews to completely rebuild the dynamic core tolerances, avoiding unneeded body wear.

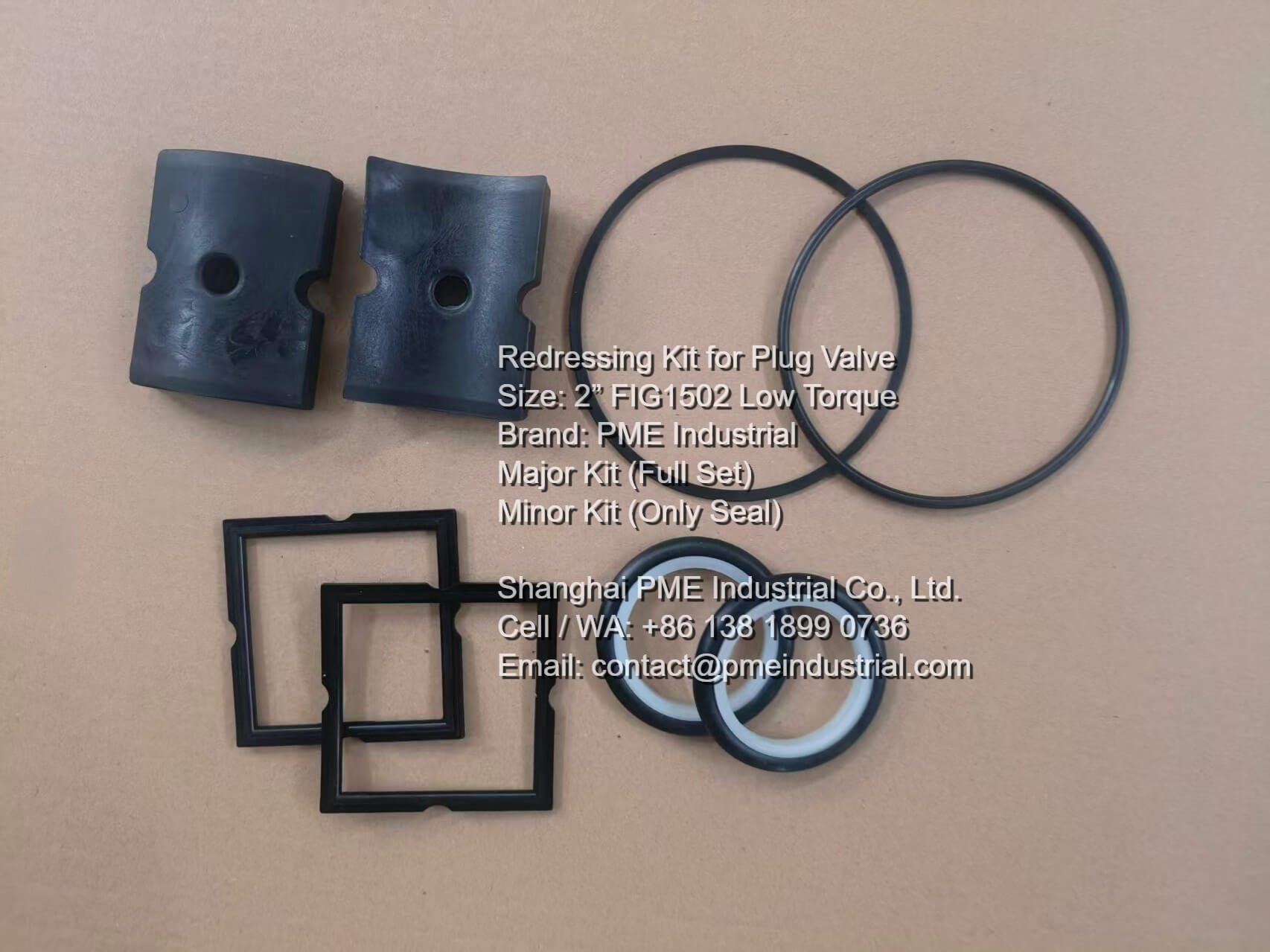

Figure 2: Dedicated Minor seal redressing pack engineered exclusively for routine, preventative turnaround intervals.

Scheduled Preventative Maintenance Protocols

Conversely, for processing teams running routine, structured maintenance turns where the structural steel core remains fully intact, deploying standalone Low Torque Plug Valve Parts via a Minor Seal Kit is preferred. This package provides high-grade O-rings and backup seal elements to maintain operational pressure margins, managing budget parameters effectively during lighter service runs.

Procurement and Exclusive Brand Matching

When purchasing a high-grade Major Plug Valve Repair Kit or a focused Minor Seal Kit 15000 PSI configuration, please note that these internal sets are precisely engineered as dedicated, proprietary replacements. They are built exclusively to restore and secure the performance parameters of PME Industrial brand fluid control iron assets.

Sourcing Specialist Reference: For factory-direct material test schedules, technical drawing approvals, or custom elastomer compound inquiries, explore the technical flow components inventory at Shanghai PME Industrial.

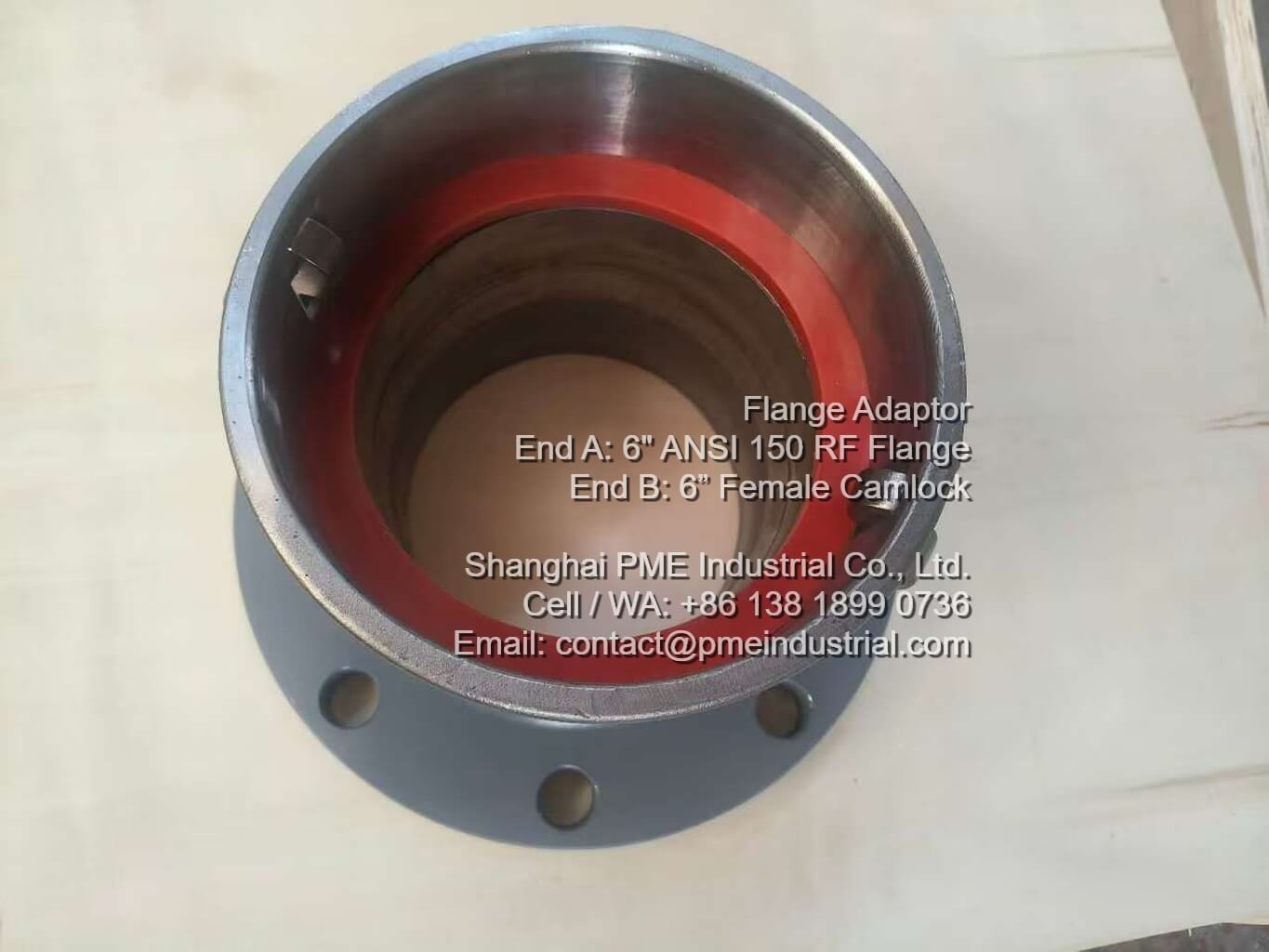

Custom ANSI 6 inch 150 lb raised face flange to 6 inch female camlock coupler crossover adapter

Engineering Notes: Transitioning Fixed ANSI Flanges to Mobile Camlock Hose Systems

In bulk liquid transport layout design, matching rigid storage tanks to dynamic transportation systems is a routine problem. While processing facility headers rely heavily on bolted structural pipeline connections, quick-connect hoses are the standard choice for field operators handling flexible connections. Bridging this specific operational gap requires a robust, heavy-duty 6 inch Female Camlock Flange crossover piece instead of makeshift multi-component connections.

Figure 1: Completed custom heavy duty locking arm mechanisms on a machined Type FC camlock interface.

Why One-Piece Crossovers Defeat Multi-Piece Stacking

Many pipeline operators attempt to build an impromptu conversion by bolting a regular companion flange to a threaded standard camlock fitting. While this works under low-pressure laboratory environments, field vibration and bending stresses from thick rubber fluid lines will weaken those extra threads over time. Choosing a unified ANSI 150# RF Flange Crossover ensures structural integrity. A single monolithic part concentrates mechanical stress along the thick steel wall, lowering macro-deflection risks during rapid emergency valve shutoffs.

Figure 2: Side view profile of a custom-machined 6" Class 150 flanged adapter terminating into a quick-connect cam and groove housing.

Selection Parameters for Non-Standard Hose Management

Selecting a non-standard Custom Cam and Groove Fitting requires analyzing fluid properties and working pressures. While the flange side follows traditional ASME ratings, the overall pressure capacity of the joint is limited by the camlock side's dynamic latch limits. It is best practice to install safety clip rings through the handle handles to avoid unexpected opening when pumping high-viscosity media.

Figure 3: Production delivery display of precision crossover couplings ready for final industrial deployment.

Optimizing System Configuration Options

When purchasing a non-standard 6 inch Flanged Camlock Coupler component from global manufacturers, confirm the continuous inner bore diameter. A true full-bore design prevents internal fluid cavitation and keeps head pressure loss minimal across terminal piping networks.

Sourcing Specialist Reference: For standard dimensions, manufacturing lead times, or specialized raw material certifications for custom pipelines, review the full catalog directly at Shanghai PME Industrial.

Integrating Fig. 206 Hammer Unions in Low-Pressure Sour Flowlines

Field Insights: Integrating Fig. 206 Hammer Unions in Low-Pressure Sour Flowlines

When setting up oilfield flowlines for hydrogen sulfide (H2S) environment applications, piping engineers often focus heavily on high-pressure manifolds like the Fig. 1502 series. However, managing low-pressure sour systems under 2,000 PSI requires equal precision in connection selection to prevent early sulfide stress cracking (SSC). A common option used in standard rig installations across Europe is the Fig 206 Hammer Union Female Sub configuration.

Figure 1: Standard carbon steel Fig. 206 female subs with Schedule 40 bevel ends for butt weld line connections.

Understanding Weld Specifications & Steel Properties

The batch highlighted above features 2-inch and 4-inch female subs paired with a Butt Weld Schedule 40 Union design. For standard pipelines, aligning the bevel parameters correctly with matching schedule pipe walls ensures smooth internal flow and minimizes turbulent erosion points. Since these units are destined for H2S sour gas environments, the forged bodies have gone through standard heat-treatment to maintain controlled hardness levels in compliance with regular API 6A PSL-1 and NACE MR0175 manufacturing guidelines.

Figure 2: 2-inch Blind Male Plug Fig. 206 component used for reliable isolation in standard 2,000 PSI cold working pressure flowlines.

The O-Ring Sealing Mechanism Option

Unlike standard Figure 200 unions which rely strictly on metal-to-metal contact, the Figure 206 features a machined groove inside the sub profile to accept an elastomeric seal ring. This configuration is widely implemented in low-pressure gas line transport networks where micro-seepage cannot be tolerated. For field operation teams, it is practical to note that while the standard machined steel parts are ready for deployment, matching rubber O-rings are completely optional upon customer request. Depending on specific chemical exposure and temperature cycles, operators can opt for either Nitrile (Buna-N) or Viton elements.

Figure 3: Standard heavy-duty box packaging for safe international transit to European distribution yards.

Piping Configuration & Field Deployment Notes

For systems requiring line capping or scheduled maintenance isolation, utilizing a certified Blind Male Plug Fig 206 allows operators to quickly seal open manifold ends using standard hammer wrenches. When securing parts from China factories for international supply chains, verifying dimension standards and material test records is standard practice to ensure structural compatibility across different operational segments.

Technical Procurement Resource: For full engineering drawings, material classifications, or to query specific pricing parameters on low-pressure oilfield fittings, please explore the official data profile on the Shanghai PME Industrial digital catalog.

Integral Pup Joint 2 Inch FIG 1502 in 5ft 10ft and 20ft lengths for high pressure well service flowlines

Engineering Review: Minimizing NPT in Frac Flowlines with Forged Integral Pup Joints

Contributed by Wellsite Iron Management | High-Pressure Piping Technology Update

In modern hydraulic fracturing and high-pressure well stimulating loops, non-productive time (NPT) caused by flowline component failure remains an expensive operational hazard. When handling abrasive proppants and high-velocity fluids under immense cyclic pressures, traditional welded straight pipes often reveal their structural boundaries. Localized stress concentrations near the heat-affected zones of welds are notoriously prone to micro-cracking and wall-thinning over extended cycles.

To completely clear this mechanical vulnerability, tier-one operators are standardizing their manifold setups with a seamless solution: the monolithic Integral Pup Joint 2 Inch FIG 1502. Machined directly from a solid forged alloy piece, this design removes the multi-piece seam interfaces entirely.

Figure 1: Full range availability of 10,000 PSI integral straight pipe sections in 5ft, 10ft, and 20ft lengths.

Precision CNC Machining: A Closer Look at FIG 1502 Connection Integrity

A secure high-pressure flowline configuration relies heavily on the mechanical precision of its hammer union connections. If the thread dimensions or the metal-to-metal sealing surfaces display slight alignment deviations out of the factory, fluid seepage can initiate low-pressure erosion, leading to sudden field washouts.

During standard technical sourcing evaluations, verified manufacturers like Shanghai PME Industrial utilize rigorous multi-axis CNC turn-mill tooling to shape the FIG 1502 Male By Female Pup Joint coupling ends. This close-tolerance processing ensures full geometry interchangeability with active global flow iron systems, providing solid pressure containment up to a steady 10,000 PSI cold working pressure boundary.

Figure 2: Precision-machined union threads and sealing cones designed for predictable make-up under field stress.

Long-Term Storage and Maritime Export Protection

Beyond operational parameters, the logistics of industrial fluid control products play an essential part in maintaining out-of-the-box performance. For high-tensile AISI 4130 Flowline Pipe lines bound for overseas oilfields, prolonged exposure to salt-heavy maritime air can provoke localized surface oxidation before the equipment even reaches the wellsite.

To counter environmental wear during sea freight, complete assemblies are meticulously coated with standard anti-rust lubricants and secured inside rugged, fumigation-free wooden crates. This robust logistical packaging safeguards the sensitive union threads and primary seal grooves, keeping them in factory-prime condition through extensive transit and warehouse storage phases.

Figure 3: Non-fumigation sea freight packaging providing robust structural defense during heavy international transits.

Technical Sourcing Resource

For comprehensive design blueprints, direct mill test certificates (MTRs), or volume pricing details on premium 10,000 PSI flow iron components, please contact a verified High Pressure Flow Iron Supplier.

Review complete catalogs of Chiksan-style fittings and custom manifold iron solutions directly via Shanghai PME Industrial.
