Hammer Union Thread Protectors

Case Highlight: Ensuring 100% thread integrity and seal surface protection for high-pressure frac lines, cementing manifolds, and well-testing equipment during transatlantic and highway transport.

Ensuring Zero NPT in High-Pressure Fluid Operations

In ultra-high-pressure oilfield flowline systems operating up to 15,000 PSI CWP, minor thread abrasion or seal ring seat contamination during transit can lead to severe pressure leaks and costly Non-Productive Time (NPT). During a recent batch dispatch for energy equipment servicing hubs in Europe, critical attention was paid to safeguarding 2-inch and 3-inch WECO connections.

To solve transit vibration and yard weathering issues, engineering teams deployed reinforced fig 1502 hammer union thread protector units specifically engineered for heavy mechanical impact resistance.

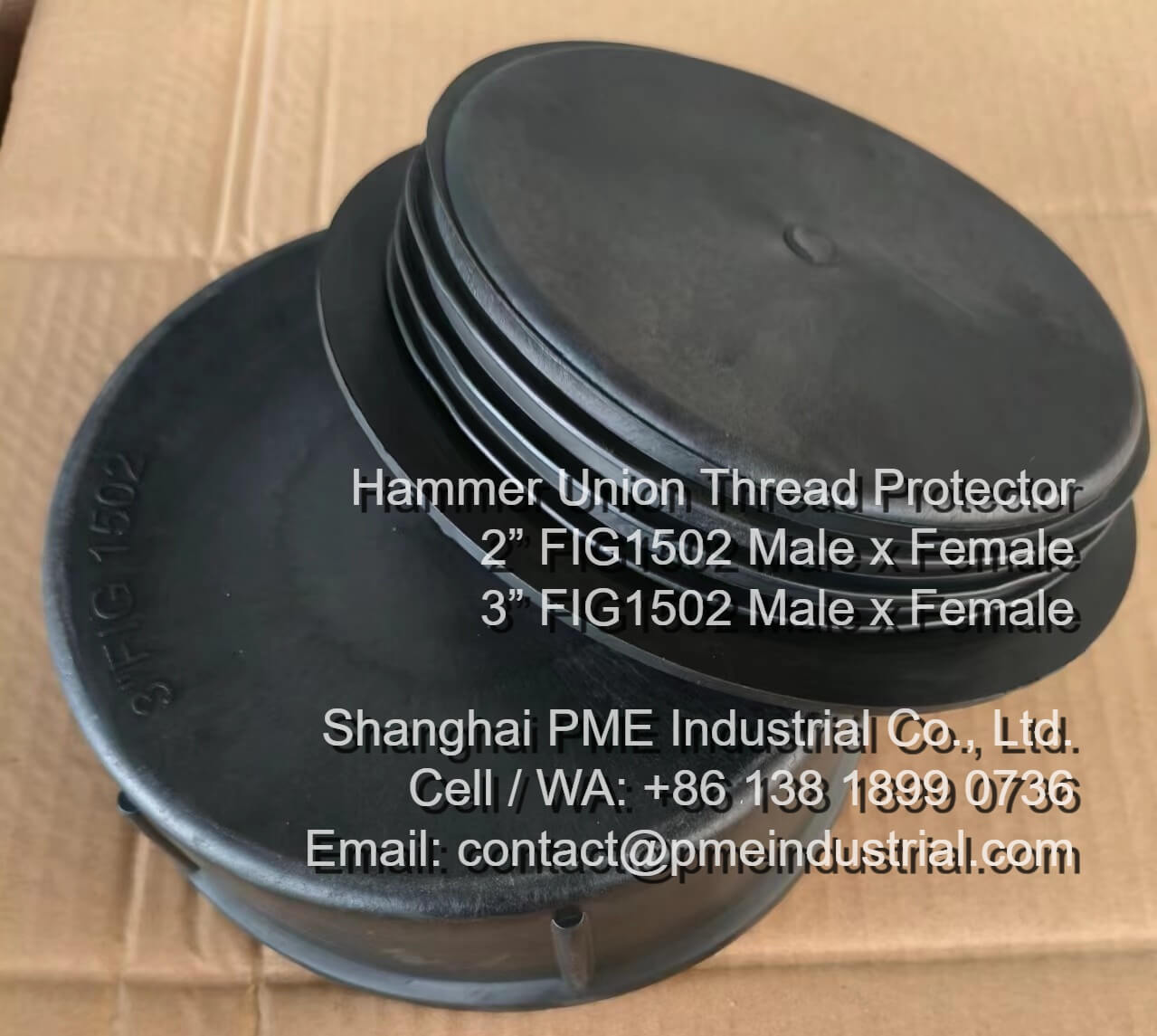

Figure 1: Heavy-duty 2" & 3" male pin and female box thread protectors designed for 15,000 PSI WECO hammer unions.

Key Protection Features in Field Applications

Unlike standard light-duty caps, these specialized male and female thread protectors fig 1502 hammer union assemblies focus on two vulnerable structural points:

• ACME Male Thread Shielding: The pin cap covers external heavy ACME threads to prevent galling, mechanical nicking, and rust buildup during long-term storage in outdoor rig yards.
• Female Seal Ring Retention: The box cap incorporates a molded inner retaining shoulder designed to lock the rubber lip seal ring or Viton O-ring in place, protecting the internal sealing face from dirt, sand, and accidental loss.

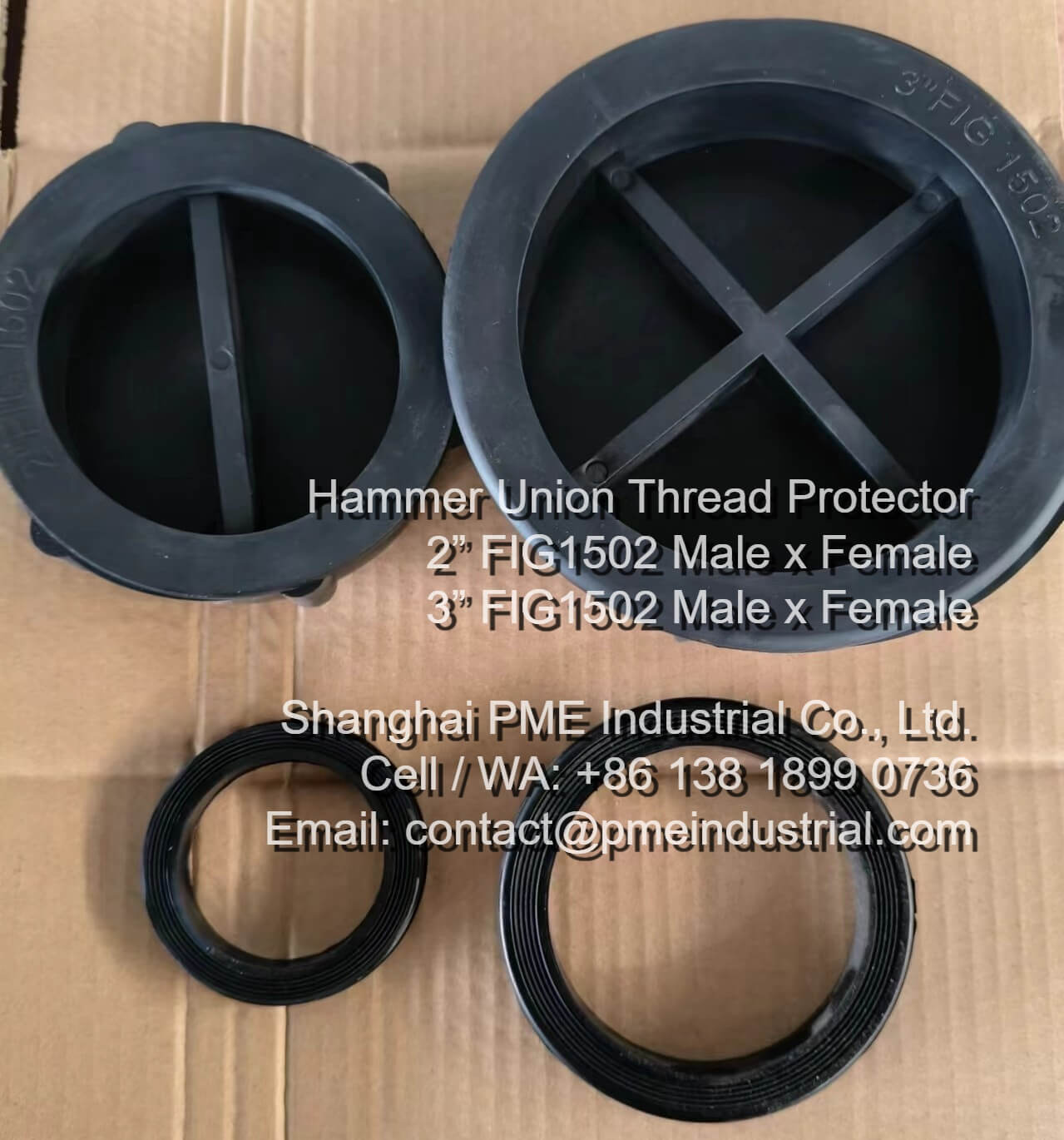

Figure 2: Female thread protector with an integrated sealing seat holding the rubber seal ring securely inside.

Seaworthy Logistics & Global Compatibility

Each protector set is built to operate under harsh ambient conditions ranging from cold northern offshore yards to desert fracturing setups. The rugged lug design permits quick manual or tool-assisted thread engagement without damage to surrounding pipe components.

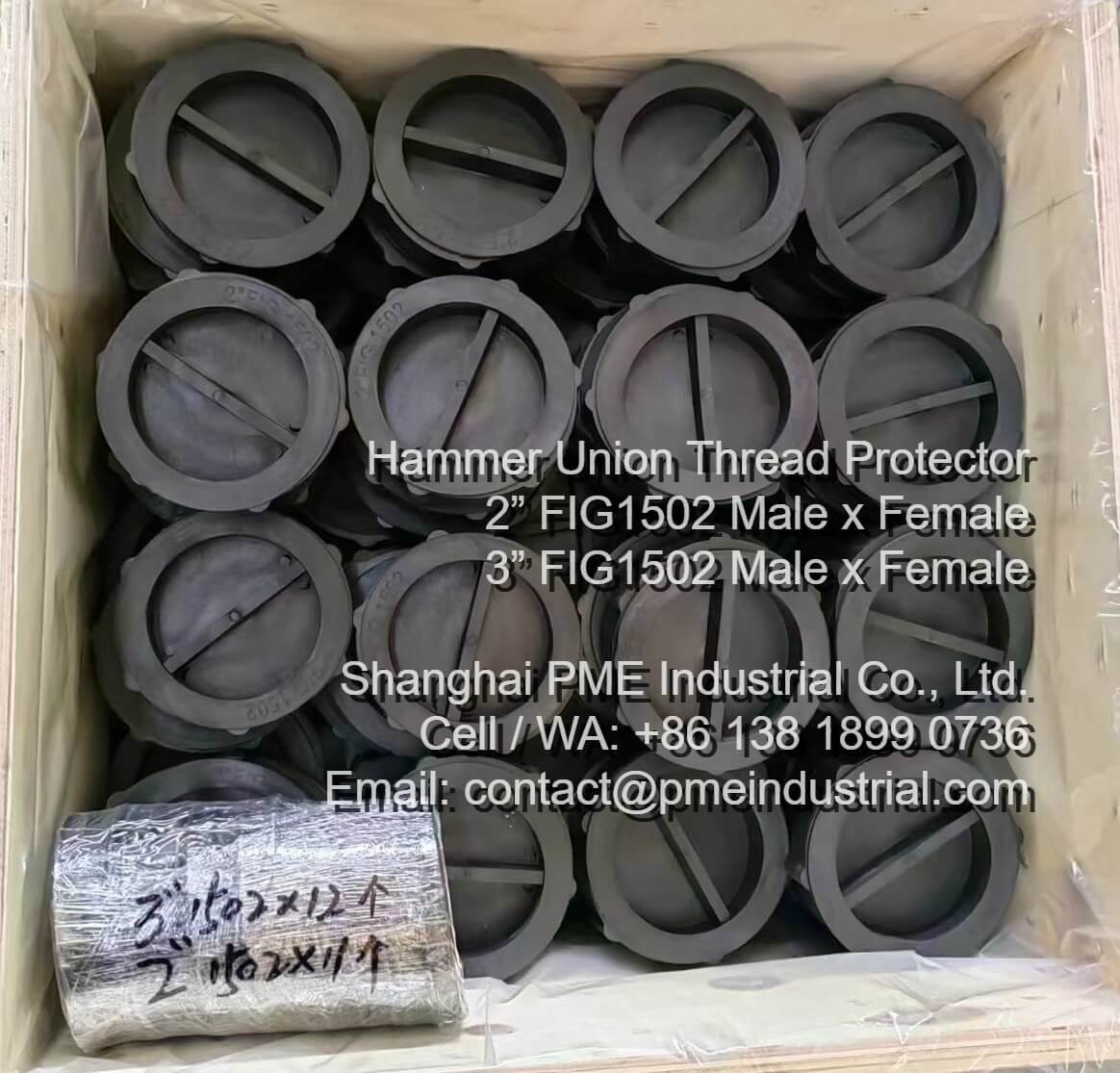

Figure 3: Batch export order packaged in heavy-duty wooden crates, inspected and prepared for international shipment.

Looking for Reliable Flowline Protection Solutions?

Explore technical specifications, sizing availability, and bulk pricing for 2" & 3" WECO compatible hammer union thread protectors directly on the manufacturer’s page.

Visit Shanghai PME Product Page →
