12 Inch Hammer Union FIG 400 NPT & 4000 PSI Specs

In modern industrial pipeline engineering, sourcing large-bore components that balance volumetric flow with secure mechanical locking is a primary challenge. Shanghai PME Industrial provides specialized engineering solutions for international infrastructure. Below is an engineering overview of our recent delivery of the 12 Inch Hammer Union to support heavy-duty fluid systems in Germany.

Engineering Specifications & 4000 PSI Performance

Standard piping systems often encounter limitations when scaling up to oversized diameters. Our FIG 400 Hammer Union configuration is manufactured through precision forging to ensure consistent wall thickness and dependable sealing under a strict 4000 PSI working pressure.

Figure 1: Side profile view of the oversized 12 Inch Hammer Union body structure.

Figure 2: Wing nut detailing pressure rating and size specifications for inspection.

Figure 3: Precision threaded end connection ensuring secure piping alignment.

Application Insights and Quality Compliance

Designed with standard national pipe threads, the NPT Hammer Union facilitates efficient make-and-break operations in temporary bypass setups, slurry lines, and industrial recirculation networks. Each production lot undergoes rigorous quality checks to meet European project standards.

Reference & Source: To review complete product dimensions, material test reports (MTRs), and official technical data sheets, please visit the official product page on Shanghai PME Industrial Official Website.

3" x 75' Grade D High Pressure Drilling Hose for US Projects

In modern oil and gas drilling operations, ensuring uninterrupted high-pressure fluid transfer is critical. Shanghai PME Industrial specializes in manufacturing dependable oilfield flowline solutions tailored to rigorous international standards. Today, we share an overview of a recently completed and dispatched assembly bound for United States energy operations.

1. Overview of the 3" x 75' Grade D Drilling Hose Assembly

The recent production batch features a standard 3" x 75' Grade D High Pressure Drilling Hose designed for demanding mud return and rotary drilling systems. Engineered to withstand high working stresses, this assembly combines structural flexibility with robust pressure-containment capabilities.

For detailed technical parameters, certified test reports, and configuration guides, you can review the official product specifications directly on the PME Industrial Grade D Drilling Hose Product Page.

Figure 1: Close-up of the 4-1/16" 5K fixed flange swaged connection.

2. Core Technical Specifications

• Size & Length: 3-inch inner diameter by 75 feet overall length, offering optimal reach on rig floors.
• Pressure Rating: Rated for 5,000 PSI Working Pressure (W/P) and hydrostatically factory-tested at 7,500 PSI.
• End Fittings: Equipped with secure 4-1/16" 5K fixed flanges swaged onto both ends, preventing slippage under maximum pump surges.

Figure 2: Export-grade crating ensuring safe transit to the United States.

3. Port Staging and Quality Assurance

Before leaving manufacturing facilities, every Grade D hose undergoes stringent multi-stage quality inspections, including dimensional checks and hydrostatic pressure verification. Once cleared, the assemblies are securely crated to withstand international ocean freight conditions.

The shipment has recently arrived at the Shanghai port warehouse, fully staged and awaiting container loading for direct vessel transport to our US client.

Figure 3: Hose assembly staged at Shanghai port warehouse prior to vessel loading.

Conclusion

Shanghai PME Industrial remains dedicated to supporting global oil and gas projects with reliable flowline components. To explore more about our manufacturing capabilities, certifications, and complete product catalogs, please visit the main website at Shanghai PME Industrial Official Website.

PME Latest 1502 Flowline & Wellhead Dispatch for Europe

When evaluating high-pressure wellhead and flowback packages for European oil and gas fields, engineering teams look closely at material traceability, pressure integrity, and sour service compliance. At Shanghai PME Industrial, our manufacturing workflows align strictly with international standards to support these critical operational demands.

Below, we take a closer look at a recently completed manufacturing run of 2-inch 1502 high-pressure fittings currently undergoing final factory acceptance testing prior to European dispatch.

1. Precision Flow Regulation: NACE Adjustable Choke Assemblies

Figure 1: 2" 1502 15K NACE Adjustable Choke accompanied by matching field repair kits.

Flow control under high differential pressure requires robust stem and seat designs. Our NACE-compliant adjustable chokes are manufactured to withstand hydrogen sulfide ($H_2S$) exposure. Each unit features clear /64” graduation indicators, allowing field operators to make micro-adjustments to flow rates safely. To maximize operational longevity, every choke ships complete with a tailored repair kit containing direct-replacement packings, stems, and seats.

2. Managing Fluid Velocity: WxT Integral Target Elbows

Figure 2: Heavy-wall 2" 1502 WxT Integral 15K Target Elbow.

In high-velocity abrasive flowback lines, directional changes experience severe erosive wear. The 2" 1502 WxT integral 15K target elbow is forged with an extended, thickened impact zone designed to absorb direct momentum and protect the piping structure from premature failure.

3. Real-Time Diagnostics: Integral Data Headers with Tamped Ports

Figure 3: 2" 1502 WxT Integral 15K Data Header featuring a precision 1/2” NPT tamped port.

Accurate data logging is essential during well testing. Our integral data headers incorporate precision-machined 1/2” NPT tamped ports, providing stable mounting points for electronic pressure transducers and mechanical gauges without compromising the structural rating of the 1502 union ends.

Looking for Certified Flowline Equipment?

Shanghai PME Industrial specializes in high-pressure oilfield flowline components built to global specifications. To review comprehensive technical drawings, material test reports (MTRs), or discuss your specific project lead times, please read the complete overview and connect with our engineering team on our official product portal:

👉 Visit the Official 1502 High Pressure Fittings & Wellhead Equipment Page

Guide to Rig Floor Safety: Why Every Drilling Rig Needs Anti-Slip Setback Mats

Editor's Note: Maximizing operational safety and preserving expensive tubular connections on high-tempo drilling rigs requires robust engineering solutions. In this article, we examine the vital role of the Drilling Floor Anti-Slip Setback Mat for Pipe Racking in modern oilfield operations.

The Hidden Risks on the Rig Floor and How to Mitigate Them

Active drilling operations present continuous environmental and mechanical hazards. Mud, drilling fluid spills, and high-pressure lubricants create treacherous slick surfaces around the rotary table and pipe racking zones. Slip-and-fall incidents remain a primary concern for HSE (Health, Safety, and Environment) managers worldwide.

Beyond personnel safety, rig floor operations also risk severe downhole asset damage. When heavy drill collars, casings, and drill pipes are set down rapidly during tripping, unprotected steel decks can scar, deform, or ruin expensive pin and box thread connections.

Figure 1: High-precision fabrication ensuring robust structural integrity.

Core Engineering Advantages of Specialized Setback Mats

To eliminate these dual challenges, deploying a heavy-duty Drilling Floor Anti-Slip Setback Mat for Pipe Racking serves as a game-changing upgrade. These specialized installations combine multi-functional performance into a single modular unit:

• Advanced Slip Resistance: High-traction polyurethane surfaces maintain secure footing even when drenched in heavy drilling mud.
• Efficient Fluid Drainage: Engineered channeling systems direct fluids away from high-traffic walking decks.
• Impact & Thread Preservation: Cushions heavy tubular impacts, safeguarding expensive pipe threads from deformation.

Figure 2: High-visibility yellow configuration ready for rigorous rig deployment.

Seamless Rig Integration and Maintenance

Minimizing Non-Productive Time (NPT) is essential for profitable drilling campaigns. The modular construction of these setback mats allows fast, secure installation using robust steel frameworks and locking fixing screws. Operators can quickly mobilize, install, or reconfigure components during routine maintenance intervals without complex welding or downtime.

Figure 3: Active deployment supporting rotary table and pipe racking efficiency.

Upgrade Your Rig Floor Safety Today

Discover complete technical details, custom sizing, and engineering specifications directly on our official product page.

View Official Product Page

Low Torque Plug Valve 2 Inch 5000 PSI | PME

Low Torque Plug Valve 2" × 5,000 PSI | FIG-602 Union M × F

WORKING PRESSURE: 5,000 PSI | 2" FIG. 602 HAMMER UNION | LOW TORQUE DESIGN

Engineered for demanding Singapore offshore and regional industrial environments, the low torque plug valve 2 inch delivers exceptional flow control reliability under intense working pressures up to 5,000 PSI. Utilizing an innovative pressure-balanced cylindrical plug structure, this valve significantly reduces operational torque, ensuring effortless opening and closing during intensive cementing, hydro-testing, and well service operations.

Equipped with standard 2" FIG-602 Male x Female hammer union connections, this FIG 602 plug valve ensures rapid, leak-free integration into existing high-pressure flowline manifolds and skid packages across Singapore and the Asia-Pacific. Each unit is precision-forged from premium alloy steel and undergoes rigorous hydrostatic testing to guarantee safety and longevity in aggressive oilfield applications.

📷

Insert: Low Torque Plug Valve Side View

Side Profile & Flowway

Robust alloy steel body designed for 5000 psi plug valve Singapore applications with integrated M x F Fig 602 ends.

📷

Insert: Low Torque Plug Valve Top View

Ergonomic Top Actuation

Precision-engineered handle and top cap layout minimizing operator fatigue on the oilfield plug valve Singapore skid floor.

📷

Insert: Crating and Packing View

Export Crating & Protection

Secure industrial packaging ensuring hammer union plug valve thread and sealing surface protection during regional transit.

Technical Specifications Matrix for Low Torque Plug Valve 2 Inch

Specification Parameter	Technical Details
Product Type	Low Torque Plug Valve
Nominal Size (ID)	2 Inch
Cold Working Pressure (CWP)	5,000 PSI
End Connections	2" FIG-602 Hammer Union (Male × Female)
Body Material	High-Strength Forged Alloy Steel
Application Range	Cementing, Hydro-Testing, Offshore Skids, High-Pressure Flowlines

Key Engineering Advantages of the Low Torque Plug Valve 2 Inch

Low Torque Operational Efficiency

The pressure-balanced design ensures smooth rotation under 5,000 PSI service, mitigating the risk of stem seizure and reducing crew fatigue during high-frequency manifold switching. This makes the low torque plug valve 2 inch an industry favorite for fast-paced operational decks.

Standard FIG-602 Union Compatibility

Featuring integrated Male x Female Fig. 602 hammer union ends, the valve connects seamlessly with standard treatment lines and skid piping, ensuring fast and secure setup without adapter sub requirements.

Built for Abrasive Service

Designed specifically for severe offshore and industrial fluid services, resisting particulate wear from proppants, cement slurries, and aggressive test fluids encountered across regional energy sites.

Quality Assurance and Maintenance

Every single low torque plug valve 2 inch is backed by comprehensive material traceability and pressure tests conforming to strict international petroleum standards. Regular grease maintenance through the built-in fitting further extends the operating lifespan.

Secure Your High-Pressure Flowlines with PME Industrial

Looking for dependable high pressure flowline valve solutions for operations in Singapore? Contact our technical team for factory-direct quotes and expedited shipping support.

Partner with PME Industrial Today

Request Valve Quote

Why Rig Operators Choose API 7K 4-Inch 2000 PSI Mud Hoses for Onshore Drilling

In modern onshore drilling and high-abrasion mining fluid systems, the integrity of flexible high-pressure lines dictates overall operational safety and non-productive time (NPT) control. Among various configurations, the 4-inch 2000 PSI rotary and vibrator hose remains a critical lifeline between mud pumps and standpipe manifolds.

To meet these rigorous demands, engineers increasingly rely on certified assemblies built under stringent international specifications. For an in-depth look at complete technical parameters, dimensions, and factory direct availability, you can review the official product specifications directly on the PME Industrial API 7K Mud Hose Product Page.

Rigorous factory hydrostatic pressure testing ensures structural reliability under extreme pulses.

Key Engineering Standards: API Spec 7K & FSL 2

Selecting an industrial-grade mud hose requires evaluating its internal reinforcement and quality verification levels. Hoses manufactured to API Spec 7K Grade B standards feature high-tensile multi-ply steel wire cord layers designed to withstand severe cyclic loading, bending stresses, and high-pressure surges.

Furthermore, Product Specification Level 2 (FSL 2) compliance guarantees that raw material traceability, physical property testing, and proof-load verifications are fully documented, giving drilling contractors total peace of mind in harsh environments.

Permanent embossed body markings display working pressure, standards, and thermal ratings clearly.

Optimizing Rig-Up Efficiency with Fig. 400 Hammer Unions

Time is money during rig mobilization. Equipping hoses with integrated 4" Fig. 400 Female x Male hammer union ends drastically accelerates connection and disconnection times on the drill floor. The robust wing union design provides a tight, leak-free seal capable of handling demanding oil-based and water-based drilling muds across a thermal range of -20°C to 121°C.

Secure export-grade wooden crating protects delicate thread ends and fittings during international transit.

Looking for Reliable Mud Hose Solutions?

Whether you are outfitting a new land rig or replacing legacy inventory, ensuring certified quality prevents costly downtime. Discover more technical details, sizing availability, and direct consultation options on the official PME Industrial catalog page.

Managing H2S Flowline Integrity in North American Basins

In high-pressure oilfield operations across the Permian, Bakken, and Montney basins, encountering Hydrogen Sulfide (H2S) introduces severe risks of Sulfide Stress Cracking (SSC). For frac service providers, flowback crews, and well-testing operators, selecting compliant sour service iron is a vital matter of personnel safety and regulatory compliance. Utilizing non-compliant components under 6,000 PSI working conditions can result in catastrophic failure.

Figure 1: Integral 2" Fig 1502 H2S Pup Joints available in 1m, 2m, and 4m lengths.

1. Ensuring Compliance and Mitigating SSC Risks

Strict adherence to NACE MR0175 / ISO 15156 standards is non-negotiable in sour gas environments. Specialized metallurgical tempering ensures that high-pressure flowline iron maintains its structural integrity and ductility when exposed to hydrogen sulfide. This safeguards operations during high-pressure fracturing, acidizing, and cementing phases.

2. Maximizing Uptime with Field-Repairable Lo-Torque Valves

Equipment downtime (Non-Productive Time) directly drains profitability on the well pad. Traditional plug valves often require shop servicing when seals degrade. However, utilizing a 2" Fig. 1502 Lo-Torque Plug Valve packaged with a major redressing kit enables on-site technicians to perform swift maintenance directly at the location.

Figure 2: 2" Fig 1502 Lo-Torque Plug Valve equipped with a major redressing kit for easy field maintenance.

3. Universal Interchangeability and Fleet Flexibility

Procurement managers prioritize hardware compatibility to streamline inventory. The hammer union connections across our pup joints, valves, and elbows are engineered for complete, seamless interchangeability with mainstream Weco and FMC Fig 1502 systems, allowing operators to integrate new iron into existing spreads without friction.

Looking for Complete Product Specifications & Sourcing Info?

To review technical data sheets, pressure ratings, and procurement options for sour service components, visit the official product page at Shanghai PME Industrial 2 Inch Fig 1502 H2S Flowline Equipment Page.

Figure 3: Heavy-duty 2" Fig 1502 Flowline Elbow designed to resist erosion in high-rate sour service.

Conclusion

Investing in certified, high-quality NACE-compliant flowline hardware ensures long-term operational resilience. By combining reliable pup joints, durable elbows, and easily serviceable lo-torque valves, oilfield operators achieve optimal balance between safety, compliance, and cost-efficiency.

Selecting API 16D Stainless Steel Armored BOP Control Hoses for High-Pressure Well Systems

In modern oilfield operations, blowout preventer (BOP) systems serve as the ultimate defense against well control incidents. Connecting hydraulic accumulator units to the BOP stack requires specialized hydraulic control lines capable of operating under intense working pressure and resisting direct flame exposure. Among these critical components, the API 16D BOP control hose stands out as the industry standard for high-reliability actuation.

Figure 1: Stainless Steel Armored API 16D BOP Control Hose with 1" NPT Male Fittings.

Key Design Features of API 16D Control Lines

Standard industrial hydraulic hoses are vulnerable to external abrasion, physical impacts, and high thermal radiation. A certified API 16D BOP control hose assembly incorporates specific structural enhancements to maintain structural integrity during emergency situations:

• Fire Resistance Architecture: Built to meet API Spec 16D guidelines, allowing the hose to maintain internal hydraulic pressure even when subjected to open flame conditions during a well blowout emergency.
• High Working Pressure: Rated for a continuous working pressure of 5,000 PSI, catering to demanding wellhead accumulator requirements.
• Stainless Steel (SS) Armor: An outer interlocked stainless steel sheath shields the internal hose reinforcement against mechanical crush, heavy tool drops, UV degradation, and aggressive marine atmosphere corrosion.
• Precision NPT Threading: Fitted with 1" NPT male end connections designed for secure, leak-proof integration into standard hydraulic manifolds and BOP control pods.

Figure 2: Individual unit wrapping protecting thread ends and armor from contamination prior to installation.

Applications in Regional & Global Offshore Drilling

Demand for high-pressure fire-rated control hoses spans offshore and onshore drilling sectors globally. In Southeast Asian markets such as Malaysia, Indonesia, and Vietnam, offshore jack-up rigs operating in the South China Sea rely heavily on 1" ID x 1 Meter control hose configurations for flexible BOP stack hookups.

Beyond Southeast Asia, these hose assemblies are frequently procured for well intervention and drilling programs in the Middle East, West Africa, and offshore Latin America, where harsh operating environments demand rugged, armored protective coverings.

Looking for Technical Specs & Manufacturer Quotations?

To review detailed engineering specs or request a quote for 1" 5000 PSI SS armored control lines, visit the official product page at Shanghai PME Industrial API 16D BOP Control Hose Page.

Figure 3: Export-grade wooden crate packaging ensuring zero damage during international shipping.

Best Practices for Procurement Verification

When purchasing API 16D control lines for field deployment, drilling engineers should always verify:

1. Third-party fire test certification matching API Spec 16D standards.
2. Hydrostatic factory proof test results for each serialized hose.
3. Correct stainless steel grade selection for outer armor to match environmental salinity.
4. Proper end-fitting thread inspection (1" NPT Male) to prevent thread galling upon installation.

3" FIG 100 Hammer Union | Welded SCH40 & Threaded 1000 PSI PME

In the oil and gas industry, as well as general industrial manufacturing, setting up efficient low-pressure fluid transfer lines requires hardware that balances durability with ease of installation. For lines operating under 1,000 PSI Cold Working Pressure (CWP), the Figure 100 series is the industry standard.

However, project managers frequently face a choice regarding end connections. In this guide, we break down the operational differences between welded and threaded configurations to help you make the right procurement decision.

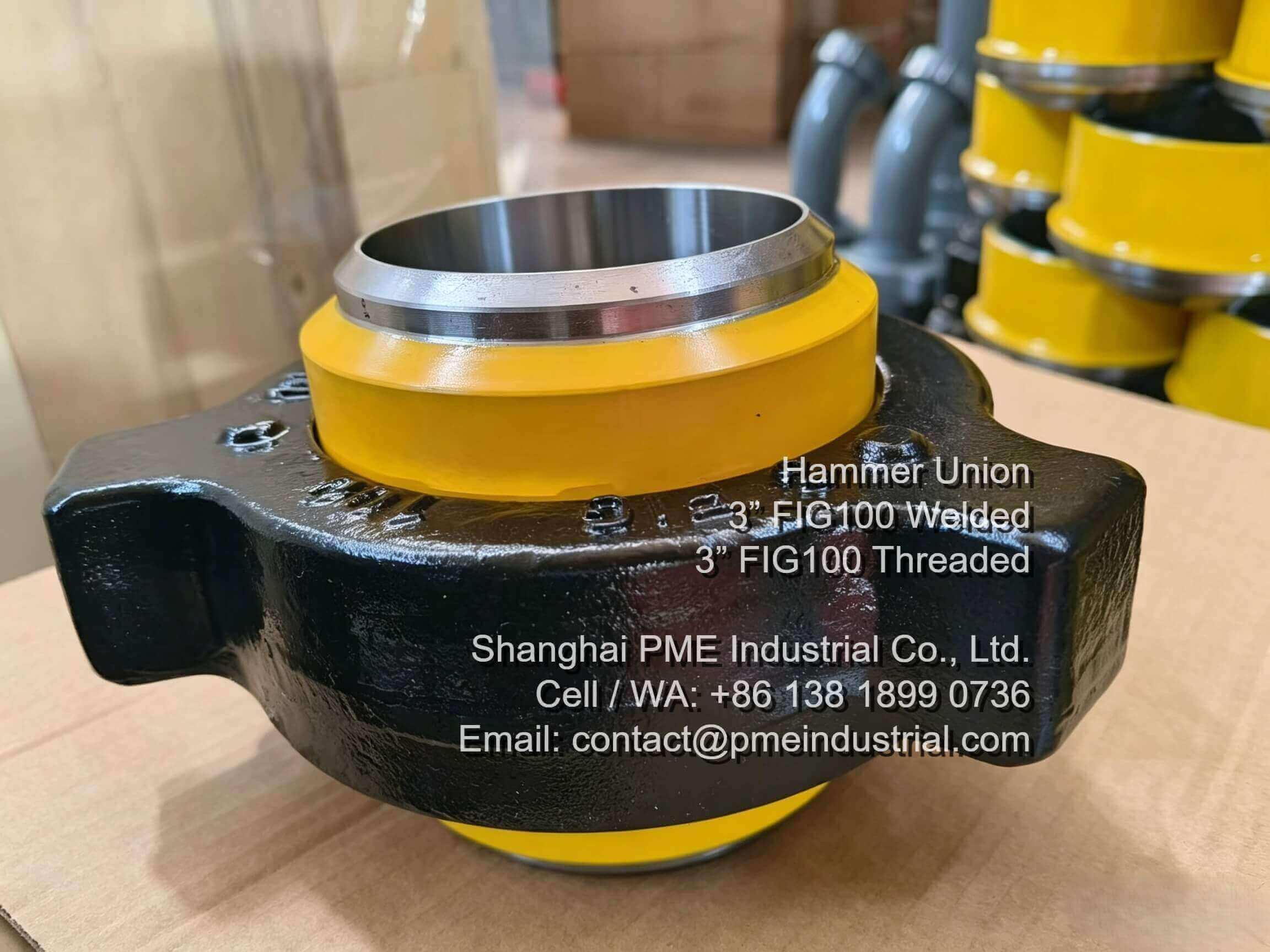

1. The Case for Permanent Integrity: Welded SCH40

When constructing fixed production manifolds or permanent plant utility lines, vibration and long-term mechanical stress are major concerns. Threaded joints, while convenient, can sometimes loosen under constant heavy vibration.

Butt-welding directly onto Schedule 40 piping systems ensures a leak-proof structural tie-in.

By opting for a welded SCH40 connection, engineers ensure a continuous, leak-proof structural tie-in. This is highly recommended for environments where the piping network will remain stationary for years.

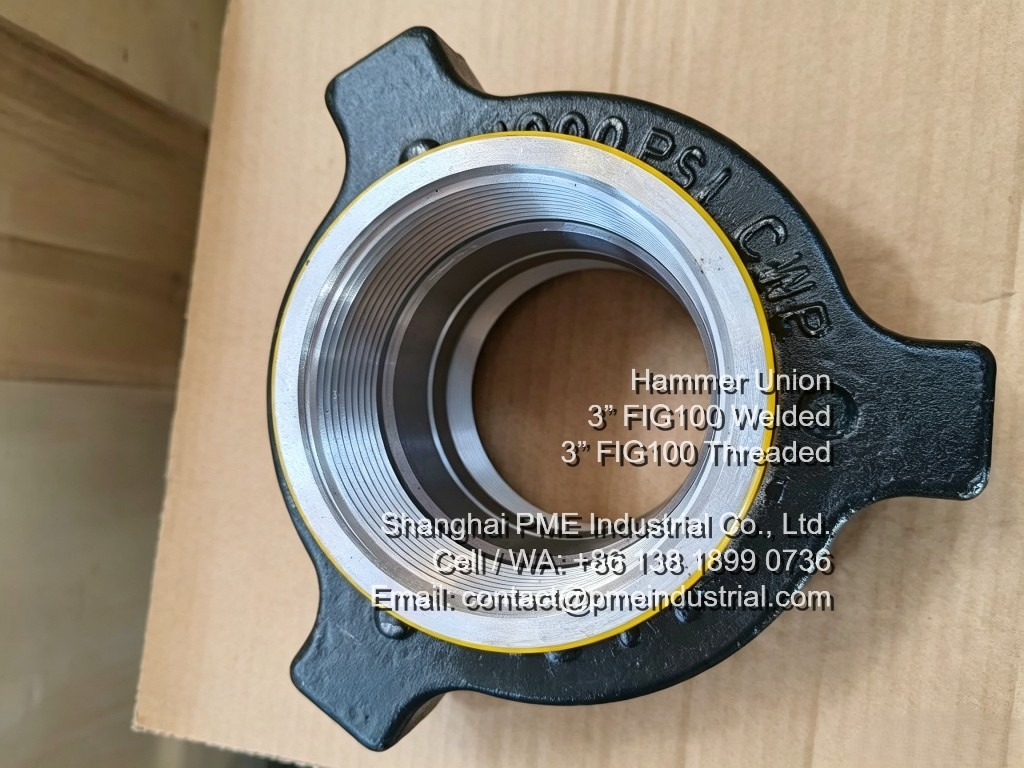

2. The Case for Flexibility: Threaded Connections

Conversely, many operations—such as temporary water transfer lines, mobile mud systems, or modular surface equipment—require rapid deployment and frequent relocation. In these scenarios, deploying welding equipment and hot-work permits in the field is inefficient.

Precision pipe threads allow for mechanical connection without on-site welding.

Threaded connections utilize standard pipeline threads, allowing field crews to screw the fittings directly onto existing pipes. This significantly reduces downtime during assembly and disassembly.

Sourcing High-Quality API/Weco Interchangeable Units

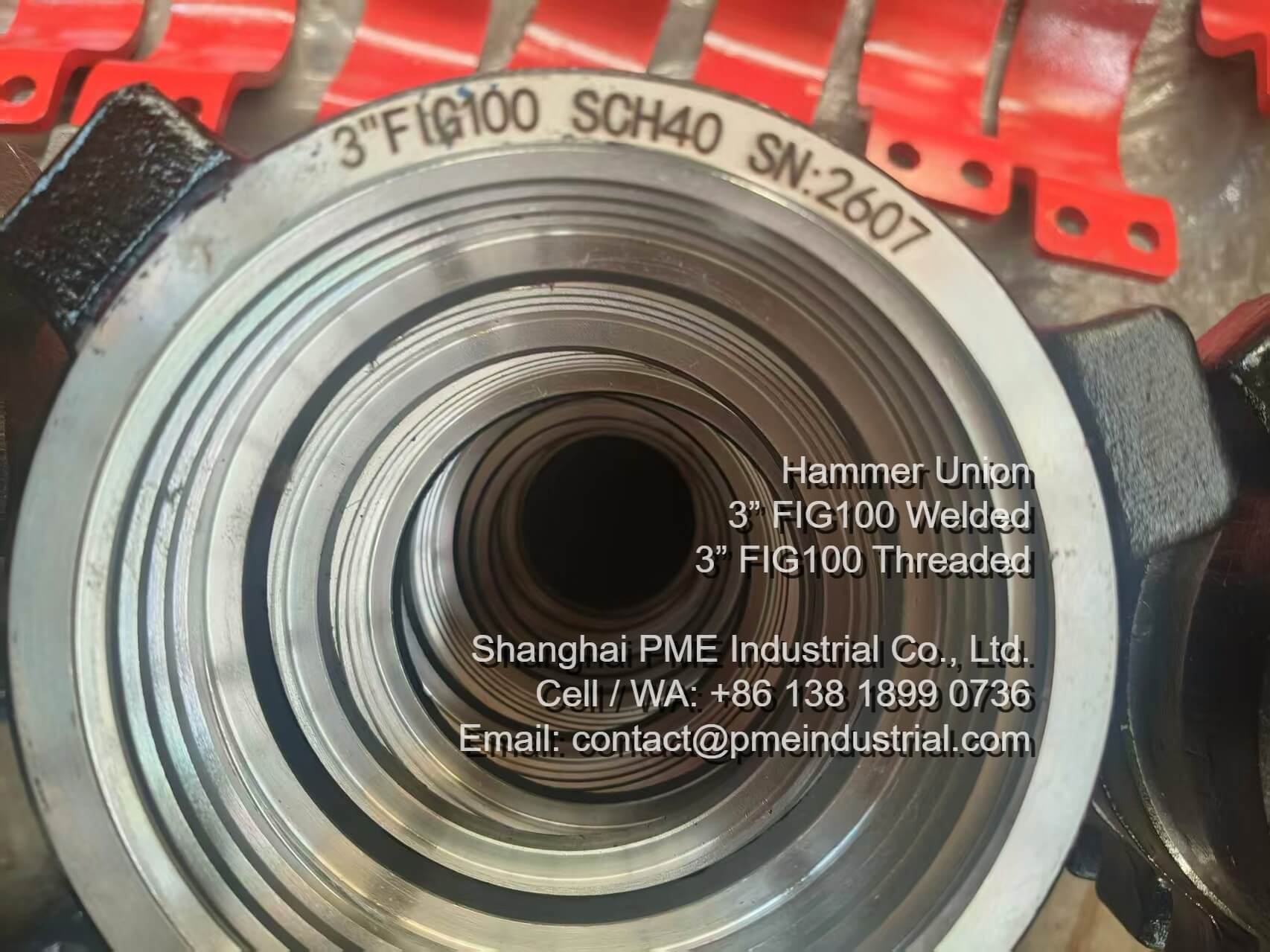

Regardless of the connection type chosen, the quality of the forging, machining, and protective coating dictates the lifespan of the fitting in harsh environments.

For European drilling contractors and global industrial facilities looking for reliable hardware, Shanghai PME Industrial manufactures top-tier solutions. Their current batch of the 3 inch hammer union FIG 100 is fully inspected, features clear cast pressure ratings, and is packed securely for international transit. Both welded SCH40 and threaded variants are available, fully interchangeable with standard Weco components.

Conclusion: Assess your project's lifespan and vibration levels. Choose welded for permanence and threaded for modularity. Ensure you partner with a manufacturer that guarantees 1,000 PSI CWP ratings and strict dimensional inspections.
