15000 PSI FIG 2202 Integral Fittings for H2S Sour Service Operations

High-pressure sour oilfield environments demand uncompromising structural integrity for surface fluid control equipment. Hydrogen sulfide (H2S) exposure combined with 15,000 PSI working pressure creates severe risks of sulfide stress cracking (SSC) and mechanical wear. To address these extreme conditions, selecting properly forged 3" FIG 2202 Integral Fittings is essential for temporary flowline safety.

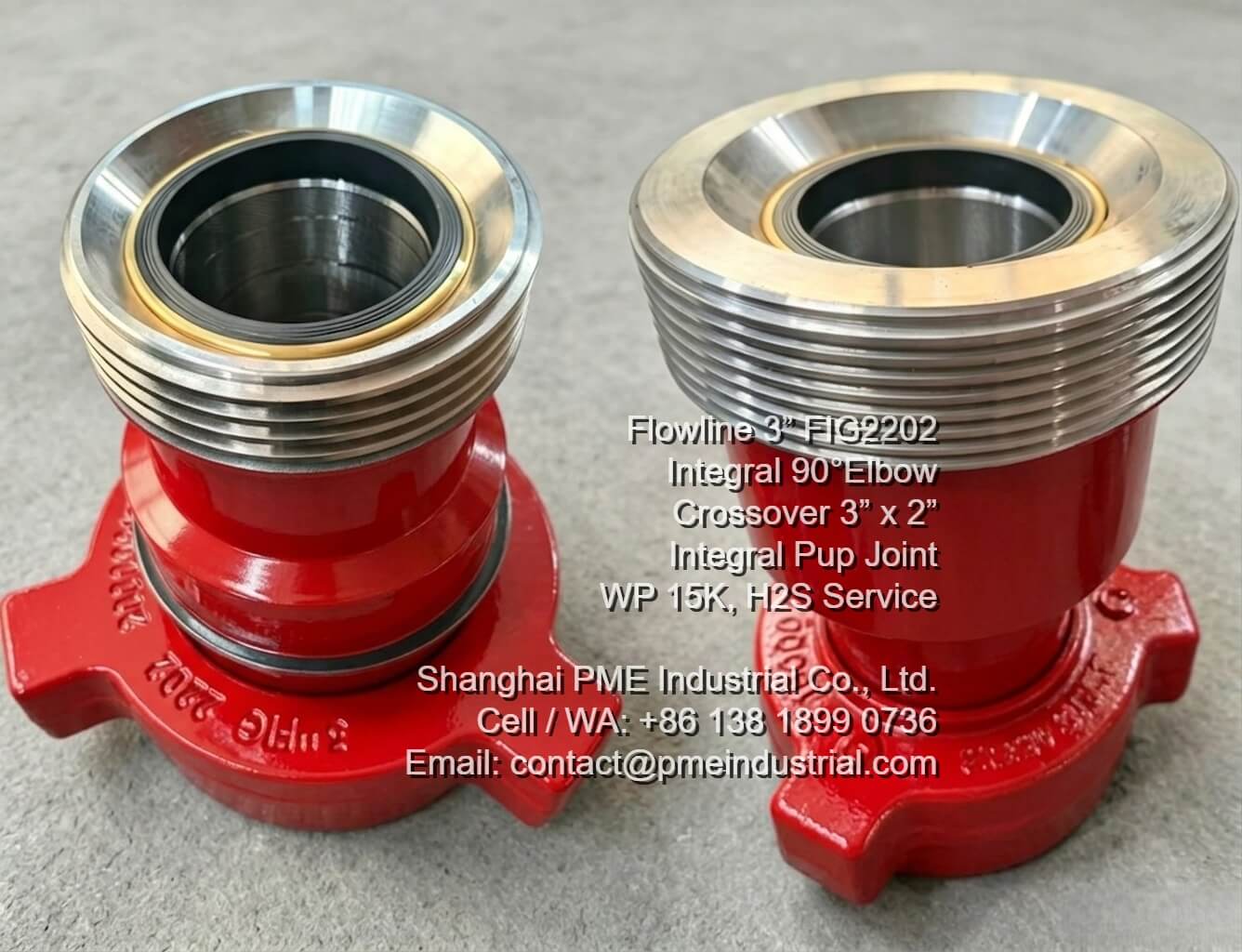

Figure 1: 3" FIG 2202 x 2" FIG 1502 Integral Crossover Adapter for Sour Service Transitions

Key Considerations for FIG 2202 Sour Service Iron

Unlike standard FIG 1502 components used in sweet service, FIG 2202 hammer union connections and integral fittings are specifically manufactured from heat-treated alloy steel complying with NACE MR0175 / ISO 15156 standards. One-piece forged construction removes potential thread leakage points, offering maximum safety during high-pressure fracturing, acidizing, and well testing operations.

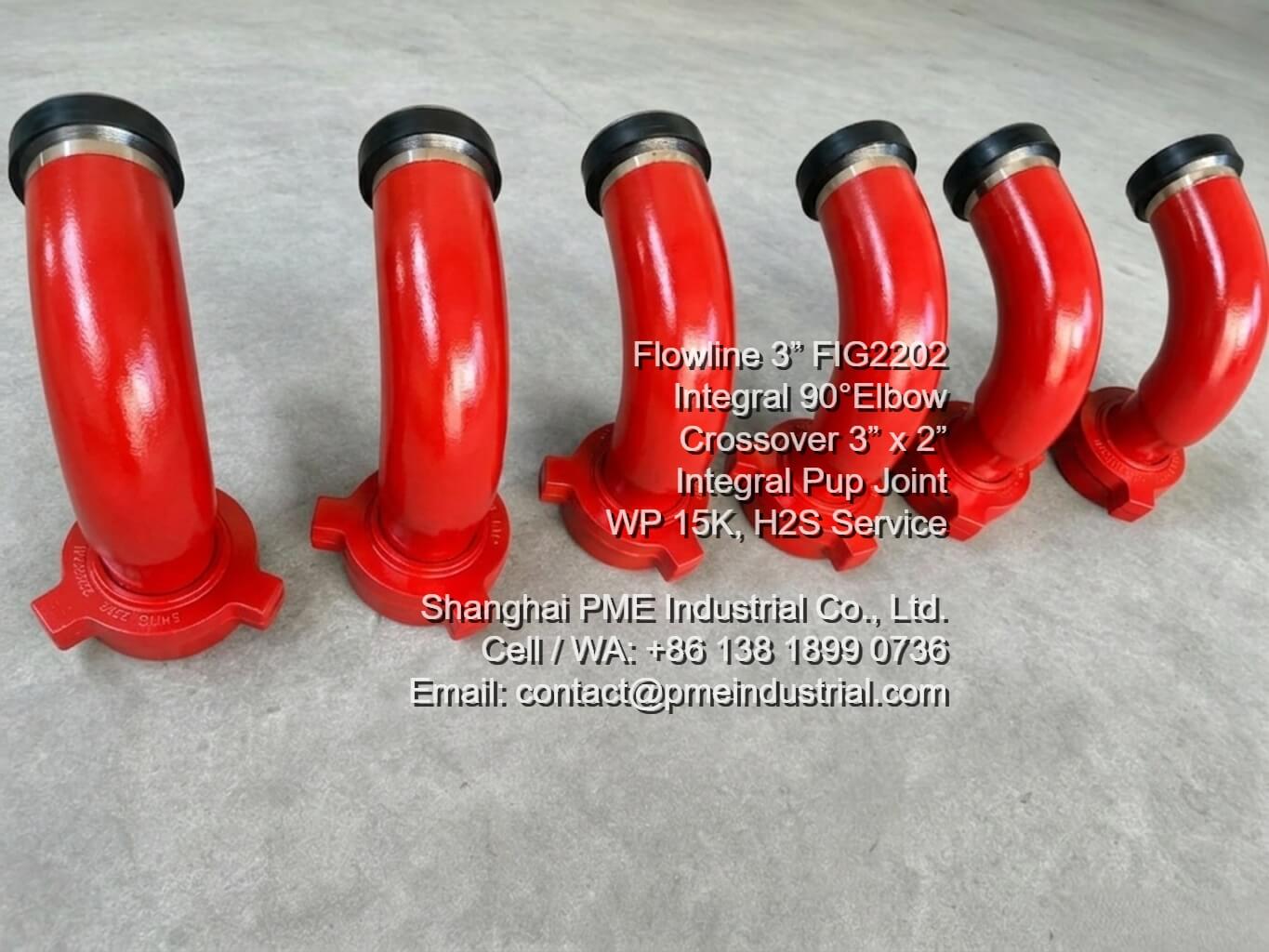

Figure 2: 3" FIG 2202 90-Degree Forged Integral Elbow (MxF)

Versatile Configurations in Temporary Surface Manifolds

To maintain flexible line layouts under high-velocity slurry flow, field operators rely on a combination of essential components:

• Integral 90° Elbows: Feature reinforced outer walls to withstand fluid erosion at high flow velocity.
• Crossover Adapters: Provide safe size and pressure transitions between 3" FIG 2202 (15K H2S) and 2" or 3" FIG 1502 connections.
• Integral Pup Joints: Available in standard lengths (e.g., 6 ft) to establish rigid, vibration-resistant temporary flowlines.

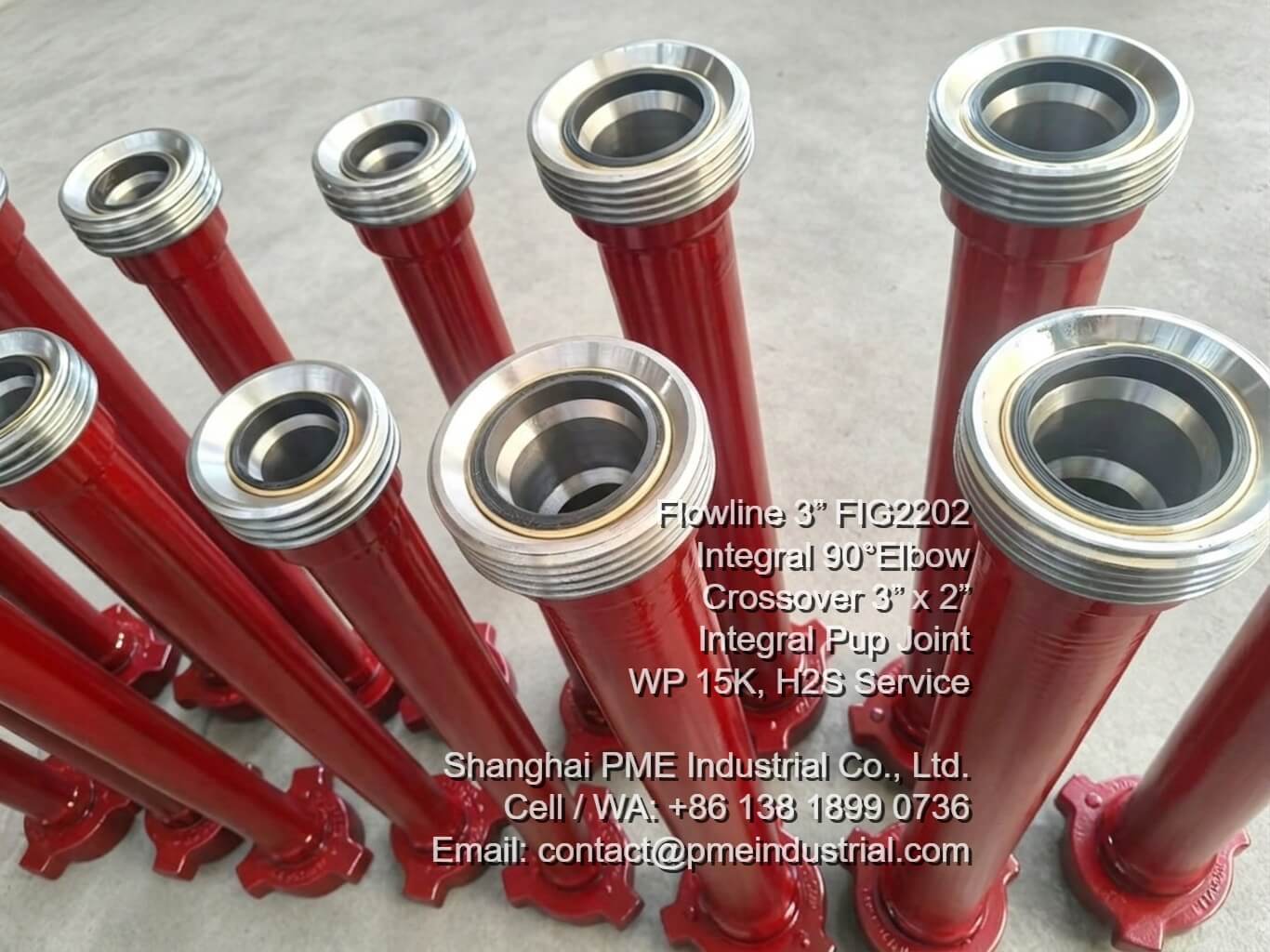

Figure 3: 3" FIG 2202 6 FT Seamless Forged Pup Joint (15,000 PSI CWP)

Looking for reliable 15,000 PSI CWP sour gas flowline components? Explore detailed product specifications and factory direct supply options on PME Industrial's Official FIG 2202 Product Page.
