Engineering Guide: Selecting High-Pressure Rotary Drilling Hoses for Mud Circulation

In high-pressure drilling spreads, maintaining steady mud circulation between the standpipe manifold and the top drive or swivel requires robust, flexible high-pressure conduits. These lines operate under continuous mechanical pulsation from triplex mud pumps, high-velocity abrasive slurry flow, and unpredictable atmospheric exposure.

Deploying an API Spec 7K certified Rotary Hose 4 Grade E 7500 PSI ensures necessary flexibility while guaranteeing high structural resistance against pressure surges up to 7,500 PSI working pressure.

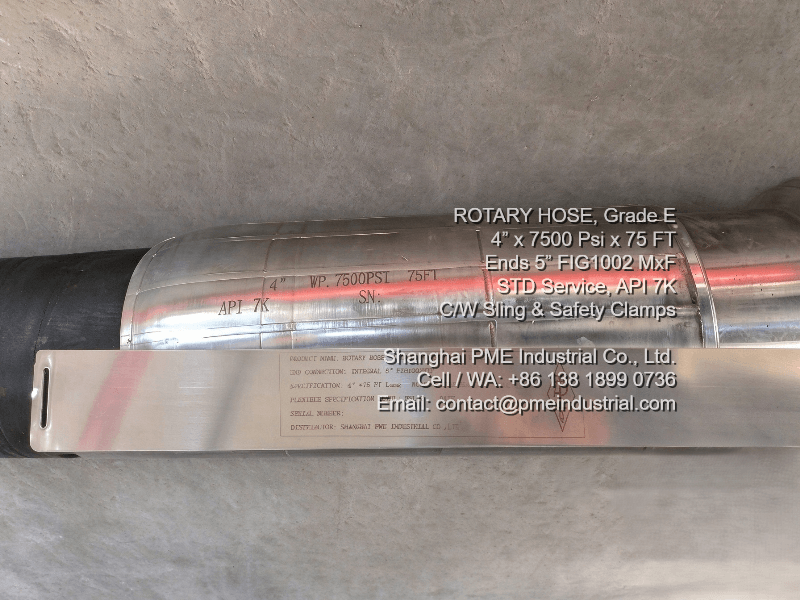

Figure 1: Stainless Steel Serialized Identification Nameplate for API 7K Traceability.

1. Structural Composition & Reinforcement Plies

Standard industrial rubber hoses lack the burst resistance and fatigue endurance required for heavy oilfield service. API 7K Grade E specifications mandate specialized multi-layer construction:

• Inner Liner: Oil-resistant Nitrile (NBR) formulated to withstand both water-based and synthetic oil-based drilling muds without swelling.
• Steel Wire Reinforcement: Multiple alternating spiral layers of heavy-gauge, high-tensile steel wire cable designed to absorb tensile strain during top drive vertical movement.
• Outer Sheath: Weathering, ozone, and flame-resistant Neoprene (CR) compound protecting internal steel plies from ocean salt-spray or desert UV degradation.

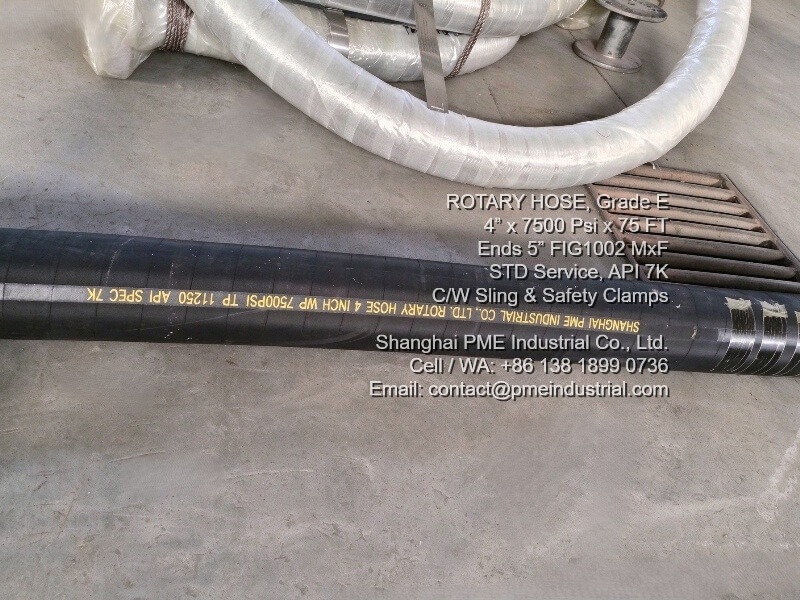

Figure 2: API Spec 7K Continuous Layline Body Marking Showing Grade E Working Pressure Ratings.

2. Rotary Hose vs. Vibrator Hose Application Differences

While both configurations share the same technical rating under a 4" ID Rotary Hose 4 Grade E 7500 PSI specification, their physical deployment locations dictate different length requirements:

• Rotary Drilling Hose (Kelly Hose): Long flex-lines (typically 45ft to 90ft) connecting the derrick standpipe to the traveling block or top drive.
• Vibrator Hose: Short flexible jumpers (typically 10ft to 30ft) connecting the mud pump discharge manifold to the standpipe, absorbing harmonic pump vibrations.

Figure 3: Heavy-Duty Reel Packaging Prepared for International Drilling Rig Shipping.

Key Inspection Parameters for Rig Maintenance Personnel:

• Check that end connections are integrally vulcanized to prevent coupling blow-off under pressure surges.
• Ensure minimum bend radius limits are respected during derrick installation to avoid kink-induced fatigue.
• Verify factory hydrostatic test certification (15,000 PSI for Grade E lines) prior to field commissioning.
