2 Inch FIG1502 Threaded Hammer Union with Male, Female, and Wing Nut Configurations
High-Pressure Fluid Connection Demands in African Oilfield Projects
In high-pressure oil and gas extraction, cementing, and well stimulation spreads across active African oilfields, pipeline integrity under intense pressure surges is vital. Operations require reliable quick-make union connections that can withstand cyclical mechanical loads without leaking. Sourcing dependable hardware like a Hammer Union 2 Inch FIG1502 ensures structural security across high-vibration drilling spreads and temporary surface lines.
Shanghai PME Industrial delivers engineered fluid components designed for demanding service ratings. Our precision-forged fittings provide the mechanical strength and pressure containment necessary for modern oilfield fluid control architectures.
Technical Specifications: FIG1502 Threaded Union Components
Every FIG1502 Threaded Hammer Union assembly is manufactured from high-strength alloy steel, heat-treated to match strict sour gas and standard oilfield specifications. Below are standard technical parameters for our 2-inch line:
| Specification Parameter | Technical Details |
|---|---|
| Nominal Size & Model | 2 Inch Nominal Size / FIG 1502 Series |
| Working Pressure Rating | 15,000 PSI Cold Working Pressure (103.4 MPa) |
| Assembly Components | Threaded Male Sub, Female Sub with Lip Seal, and Hammer Wing Nut |
| End Connections | Line Pipe Thread (NPT / LP) or Butt-Weld Options |
| Material & Quality Control | Forged Alloy Steel, Fully Traceable with MTR Documentation |
Performance Advantages of Male, Female, and Wing Nut Assemblies
The design of a 2 Inch FIG1502 Male Female Wing Nut assembly provides distinct mechanical benefits on the rig floor:
- Robust Sealing Mechanism: The FIG1502 Hammer Union incorporates a resilient lip seal that acts as a primary barrier against fluid leakage under high-frequency pressure fluctuations.
- Rapid Make-Up: The heavy-duty wing nut engages smoothly with the threaded male and female subs, allowing rig crews to couple lines quickly using standard hammers.
- High-Pressure Capability: Built specifically to handle 15,000 PSI service, this 2 Inch FIG1502 Union safeguards critical cementing and fracturing manifolds.

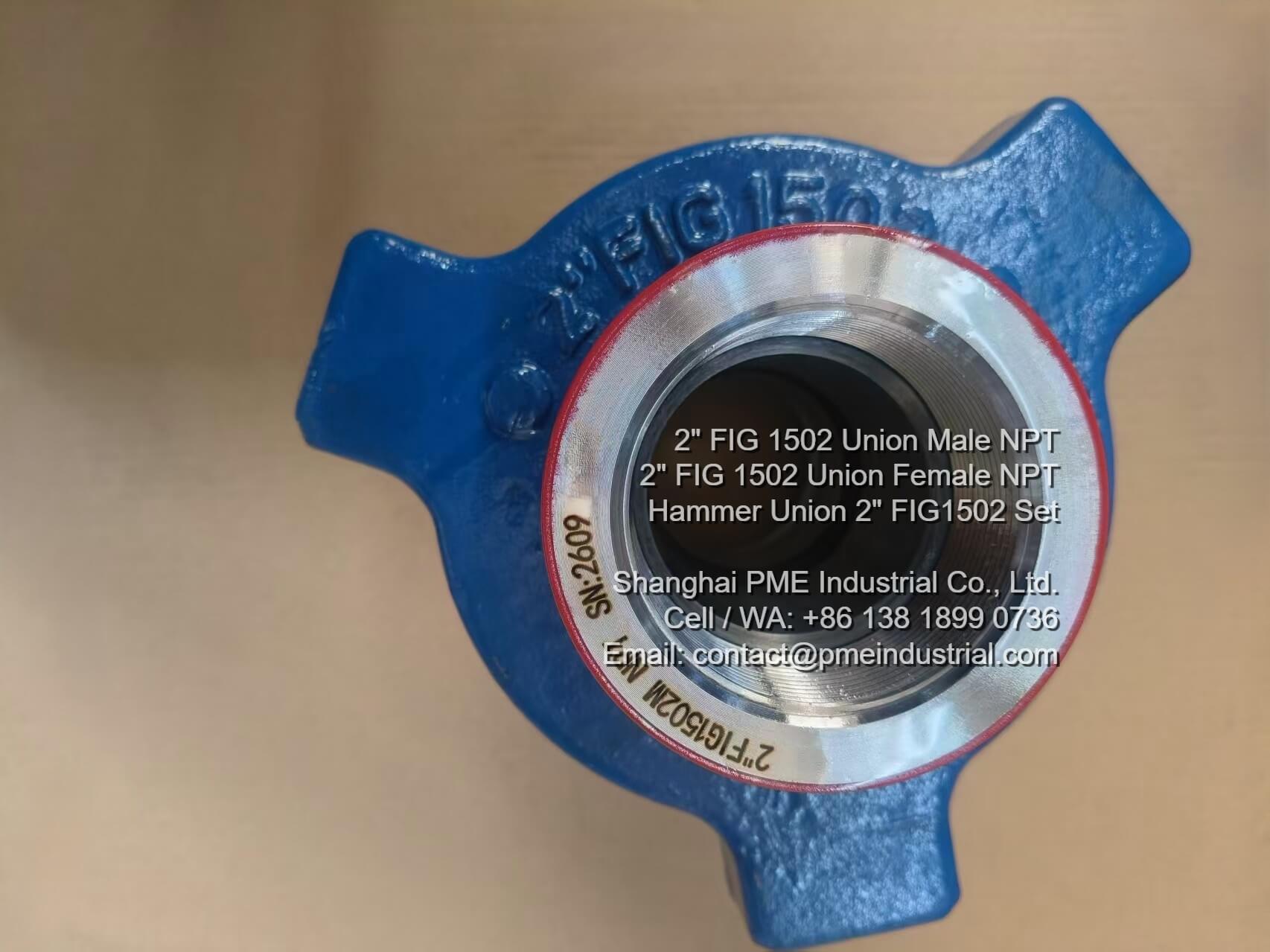

Embossed pressure rating and serial number on a finished Hammer Union 2 Inch FIG1502 unit.

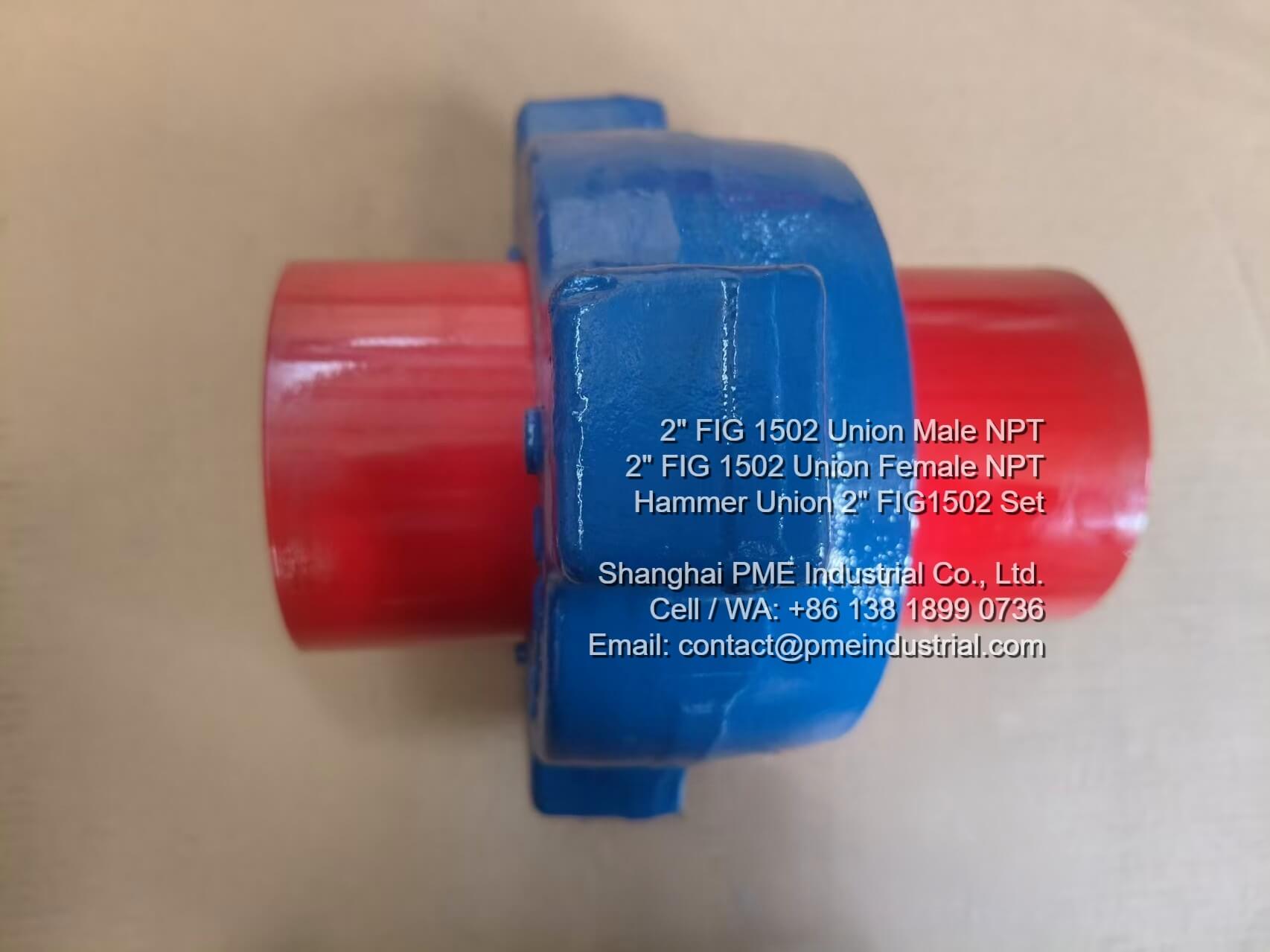

Assembled Threaded Hammer Union FIG1502 ready for pressure testing.

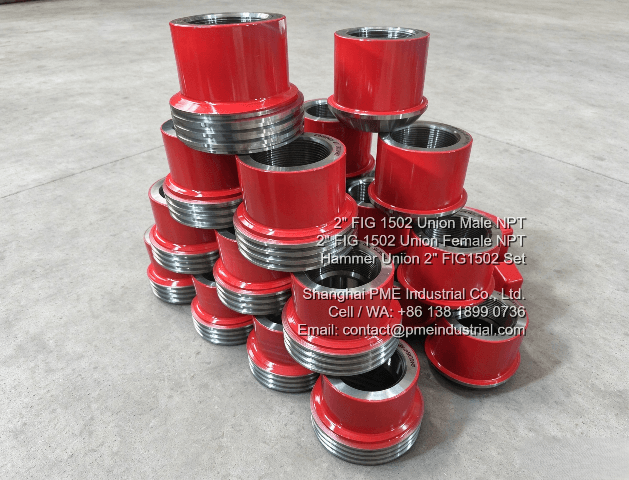

Precision-machined NPT threads on a 2 Inch FIG1502 Male Female Wing Nut set.
Case Spotlight: Recent Completion and Dispatch for African Clients
Meeting project delivery timelines is critical when oilfield operators require replacement components for active drilling campaigns. Shanghai PME Industrial recently completed a major production batch of high-pressure fittings ordered by an established oilfield service provider in Africa.
The order featured multiple configurations of the Hammer Union 2 Inch FIG1502, complete with matching threaded male subs, female subs, and durable wing nuts. Following rigorous dimensional checks and quality inspection, the entire batch has been successfully finalized and prepared for export shipment to support regional well servicing operations.
Why Global Oilfield Operators Choose PME Industrial
As a trusted partner in international oilfield supply networks, Shanghai PME Industrial focuses on delivering verifiable quality and dependable export service:
- Full Material Traceability: Complete Material Test Reports (MTRs) and quality inspection certificates accompany every batch.
- Strict Pressure Compliance: Designed to meet or exceed industry standards for 15,000 PSI high-pressure service.
- Reliable Export Logistics: Secure packaging designed to withstand international transit to African and global oilfields.
