Integral Pup Joint 15000 Psi High Pressure Flowline Solution H2S Service

As a premier manufacturer based in China, PME specialize in high-performance Integral Pup Joints designed for oilfield environments. Our high pressure flowline serve as a high-quality, cost-effective alternative to international premium brands FMC Chiksan, ensuring that your drilling operations maintain maximum uptime without the "brand name" premium price.



Engineered for Performance: 15,000 PSI High Pressure Pup Joint

Our Integral Pup Joint is manufactured from a single piece of high-strength alloy steel, eliminating the risks associated with welded joints. Specifically engineered for oilfield drilling pup joint services, these components provide the structural integrity needed for fracturing, cementing, and well-testing operations



Technical Specifications

Working Pressure: Rated for 15000 PSI Pup Joint applications (CWP).

End Connections: Equipped with Fig 1502 Pup Joint Hammer Unions (Male x Female) for seamless compatibility.

Bore Sizes (ID): Available in 2” and 4” inner diameters.

Standard Lengths: 4 FT, 6 FT, and 10 FT (custom lengths available upon request).

Service Environments:

Standard Service: Optimized for water, oil, and gas flow

H2S (Sour Gas) Service: Manufactured in compliance with NACE MR0175



The Advantage of PME Integral Straight Pipe

High-quality 15,000 PSI Integral Pup Joints for oilfield drilling. Featuring Fig 1502 MxF connections, 2” & 4” IDs, available for Standard and H2S service. Proven Chinese manufacturing excellence with global delivery.



1. International Quality, Chinese Pricing

PME Integral Straight Pipe matches the standards and performance of global market leaders. By sourcing directly from PME China-based, you benefit from cost savings.



2. Field-Proven Globally

PME Integral Pup Joint is currently in use across major oil basins worldwide. We’ve successful exported to North America, the Middle East, and Southeast Asia.



3. Quality Control

Each integral pup joint delivered with unique tag with full details of specification, serial number, and manufacturing for traceability.



Don't let high flowline costs stall your projects. Join the global operators who trust PME high-quality Chinese-manufactured solutions for your drilling needs.



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

2025-12-18

Integral Pup Joints for Sour Gas Service 2” x FIG1502 10K Enhance Well Integrity

 For high-pressure well service, the integrity of every single connection is paramount.



PME Integral Pup Joints are an indispensable part of your well testing, cementing, and fracturing operations across key European and international markets, particularly those involving Sour Gas (H₂S) Service.



PME Integral Pup Joints are used to adjust the length of flow lines, manifold connections, and well service equipment. They feature integrated hammer unions at both ends, eliminating the need for intermediate connections and reducing potential leak paths.



PME High-Pressure Pup Joint are specifically built for Sour Gas H₂S Service, adhering strictly to the NACE MR0175/ISO 15156 standard. This critical feature makes PME product a safer, more reliable choice for high-stakes oil and gas exploration.



We are strategically focused on supplying our high-quality Integral Pup Joints to major oil and gas players in key European nations, including:

Norway: Supporting North Sea operations, where high pressure and severe conditions are common.

The United Kingdom (UK): For use in aging fields and new developments requiring robust, NACE-compliant equipment.

The Netherlands: Serving both onshore and offshore exploration and production activities.

Romania: Targeting growing onshore drilling and well intervention projects.



Competitive Advantage: PME Pup Joints vs. The World

When selecting Well Service Pup Joint, reliability is the bottom line. While global leaders like FMC Technologies (TechnipFMC), Weir Group (W-HSP), and Cactus Wellhead offer reputable high-pressure components, PME brand provides a compelling alternative:



Feature	PME Integral Pup Joint	Competitor Equivalents (e.g., from W-HSP, FMC)
Nominal Size	2" (Two-Inch)	2" (Two-Inch)
End Connections	FIG 1502 Male x Female (M x F)	FIG 1502 Male x Female (M x F)
Sour Gas H₂S Compliance	Full NACE MR0175 Compliance	Generally NACE compliant, but pricing can be premium.
Working Pressure	10,000 Psi (WP)	Standard rating, widely available.
Length Options	4 FT, 6 FT, 10 FT or Customized Lengths	Often restricted to standard lengths for immediate delivery.
Value Proposition	Premium Quality at a Competitive Price	Established global brands with higher cost structure.



We deliver the same high-specification, 10,000 Psi working pressure, and crucial NACE compliance found in global brands, but with a focus on cost-efficiency and flexible customization, making us the smart choice for field operators.



PME commitment to delivering a 10000 Psi Hammer Union Pup Joint remains the same. The standardized FIG 1502 end connection ensures seamless integration with your existing high-pressure manifold equipment.



Don't compromise on safety or well integrity. PME Integral Pup Joints are the definitive choice for your next demanding project in corrosive, high-pressure environments. With guaranteed Sour Gas H₂S Service compatibility and the flexibility of customized lengths, we provide the connection you can trust.



Contact PME today to discuss your specific flow line requirements and secure a quote for our NACE-compliant, 10000 Psi High-Pressure Pup Joint components.



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

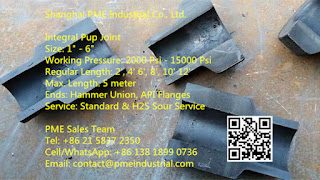

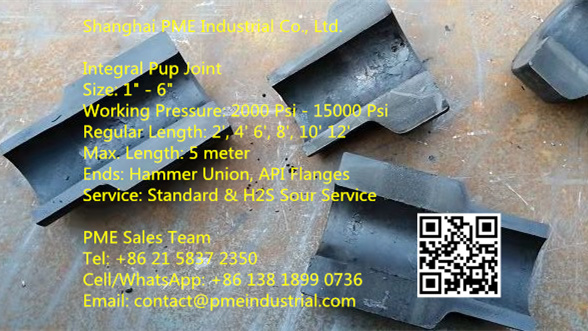

How to forge quality integral pup joints 3 INCH 15 K FIG 1502: Upsetting, Heat Treatment and NDT

As one of leading integral pup joint manufacturer in China, PME produce integral pup joints for high pressure flowline equipment as choke mainfold and hose loop (cementing and circulating metal hose).



Main fabrication process of PME integral pup joint 3" FIG1502 CWP 15000 Psi consist of upsetting, heat treatment, blasting, NDT, CNC machining and coat painting in accordance with API specification and clients' technical drawings.



PME can forge the integral connections, 3" FIG 1502 Male Ends and Female Ends, as customers' requirement. Refer to the photo below for inner photo of forged pup joint premium union connections.



The heat treatment of PME integral pup joints are used electrical induction furnaces. Quenching and tempering (Q&T) can strengthen the material 4130, 42CrMo, or other raw material as user request.



PME also supply OEM service to forge the materials in name of customers' brand. It help PME customers build their brand awareness and have an edge with other local oil and gas equipment peers.



For more products details:

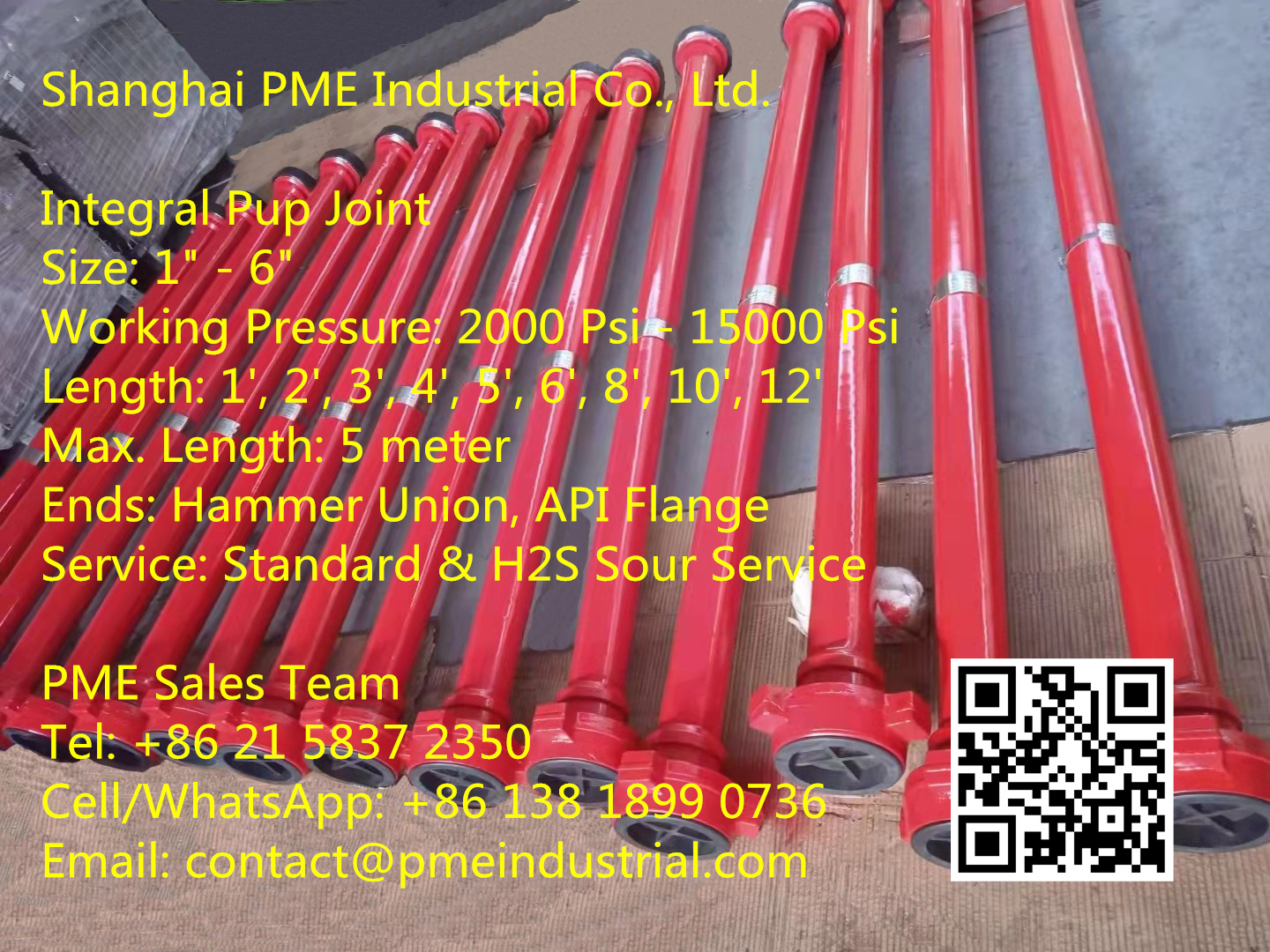

Integral Pup Joint

Size: 1" - 6"

Working Pressure: 2000 Psi - 15000 Psi

Regular Length: 2', 4' 6', 8', 10' 12'

Max. Length: 5 meter

Ends: Hammer Union, API Flanges

Service: Standard & H2S Sour Service



Cell/WhatsApp: +86 138 1899 0736, Email: contact@pmeindustrial.com



We look forward to your reaching!



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Forjamento Pup Joint Integrais 2 inch 3 inch OEM China uniões figura 1502

A PME fornece pup joint integrais com a união do martelo 2 "e 3" FIG1502 macho x fêmea.



PME pup joint integrais 2 "e 3" é forjada em liga de aço 35CrMo ou AISI 4130 para serviço de H2S ou gás.



A pressão de trabalho da PME pup joint integrais 2 "e 3"varia de 6.000 a 20.000 psi. PME pup joint integrais 2 "e 3" FIG1502 pode ser até 15,000 psi. Existem diferentes comprimento para opções como 2 pés, 4 pés, 6 pés, 8 pés e 10 pés.



PME Pup Joint integrais

Tamanho: 2 ", 3"

Pressão: 15000 Psi

Conexão: FIG1502 macho x fêmea



PME também produzem válvulas tipo tampas, cotovelo chicksan modelo, FMC modelo Válvula de Esclusa, Adaptador Macho X Fêmea, Curva Raio Cotovelo, Derivação Lateral, WYE e acessórios integrais para fluidos e gás H2S a pressões de até 15000 psi de trabalho.



Ligue para a PME Industrial, você receberá uma resposta instantaneamente!



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

How to packing Chiksan Type Integral Pup Joint for shipment from China by sea?

Different with other Chiksan type iron treat flowlines like swivel joint, plug valves, flange union adaptors, integral pup joints are straight pipe in 6ft, 8ft, 10ft, 12ft.

Length with pipe body and unions ends can be up to 5 meters by Shanghai PME Industrial. As PME Chiksan type pup joints  made from China quality alloy steel like 35CrMo, A105, AISI 4130, the total weight of one package can be 4000 KG or even more!



How to packing these heavy heat treatment iron works for long trip by ship or by airplane make it as the key part of delivery.



Take integral pup joints 2" CWP 15K 10 Feet for example:

Firstly, PME Industrial logistics team secure these hardware pipelines in steel frame to avoid any shaking.

Secondly, we use plastic film to wrap around the integral pup joints assembly and fix them on the pallet.

Thirdly, PME logistics team packing these straight pipes into plywood boxes, which is free of fumigation.



Refer to the packing steps as below photos.

Description

Integral Pup Joints

Size: 2"

End: 2" FIG 1502 MxF

Working Pressure: 15000 Psi

Length: 3ft, 5ft, 8ft, 10ft

Material: AISI 4130

Service: Standard



CONTACT PME INDUSTRIAL DIRECTLY!

LET US FIND YOU A SOLUTION FOR YOUR FLOW CONTROL!



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Integral Pup Joints Chiksan type Piping 1 inch 2 inch FIG 1502 3 meter China Supplier

PME Industrial is the great supplier of high pressure Chiksan type pup joints in China. PME pup joint  are forged in quality alloy steel like A105, 35CrMo, AISI 4130 or other quality raw material for high pressure H2S sour gas service.



PME pup joints sizes in 1 inch, 2 inch, 3 inch, 4 inch, 5 inch and 6 inch with pressure rating up to 15000 psi and 20000 psi.



For the connections of integral pup joints, PME Industrial offer unions male by female, API flange, and thread for options.



Besides of using as high pressure piping, PME integral pup joints are main parts of hose loop for oil and gas application, which is also named circulating and cementing hose line.



Chiksan type pup joints assembled with plug valves, choke valves, integral tee male x male x female, integral crossover can be made as choke kill manifold assembly in FIG 602, FIG 1002, FIG 1502.



Technical Parameter of PME Integral Pup Joints

Size: 1", 2"

Working Pressure: 15000 Psi

Ends: FIG 1502 Male x Female

Length: 1 meter, 3 meter

Service: H2S Sour Gas Service



Just tell us the size (1", 2", 3", 4" 5" or 6"), working pressure (6000 psi, 10000 psi, 15000 psi, 20000 psi), length (1m, 2m, 3m, 4m, 5m, 2ft, 3ft, 4ft, 6ft, 8ft, 10ft, 12ft), standard service or H2S sour gas service, you will receive great offer and strong support of integral pup joints made in China!



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Chiksan Type Integral Pup Joint, 2", FIG 1502, 3M, Sour Gas Service NACE MR 01 75

PME have been receiving many RFQs of pup joints and tubing pipe API 5CT with EUE 8RD or others. PME is always welcomed new pup joints inquires but these ones are not for high pressure flowline heat-treatment irons.



PME integral pup joints are forged by premium alloy steel 4130 or 35CrMo into integral structure, also named high pressure straight pipes. PME pup joints are compatible with FMC Chiksan and SPM pup joints for fracturing manifold, cementing manifold, choke manifold and other well service application.



PME integral pup joints are strictly designed, produced and pressure tested according to API 16C, API 6A and NACE0175, which is suitable for sour gas h2s service.



Function same as Chiksan pup joints, PME one piece pup joints can up to lengths 12 ft and working pressure 15000 psi. Both standard service and NACE service are available.



PME pup joints are delivered with full set MTRs for traceability at no additional charge. PME is also specialized in OEM with clients logo and tag and only forged parts as long term pup joint supplier in China.



Normal size: 1", 2", 3", 4"

Unique Figure: Wing Union Ends FIG 602, FIG 1002, FIG 1502

Length: 1', 2', 3', 4', 5', 6', 8', 10', 12'

Cold Working Pressure: 6,000 Psi, 7,500 Psi, 10,000 psi, 15,000 psi

Max. Working Pressure in Standard Service: 15,000 Psi

Max. Working Pressure in Sour Gas (H2S) Service: 10,000 Psi



No matter if you are well testing service companies, oilfield drilling contractors, oilfield manifold system importing suppliers, contact PME Today at +86 138 1899 0736 for API 16C approved pipe joints and fittings for general inquiries.



PME Sales Team

Tel: +86 21 5837 2350

Cell/WhatsApp: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Chiksan Type Piping 2 Inch WP 15000 Psi FIG 1502

Chiksan type piping is high pressure fluid control products as flowline pipe or integral pup joints. They'are widely used cementing, fracturing and well testing.

PME flowline pipes in Chiksan type are forged with quality alloy steel, with full set QA certificates like MT, UT, raw material certificates EN 10204 3.1, and test pressure reports.

PME are shipping Chiksan type pup joint 2" FIG1502 to oilfield supply clients as below photo.

Product Name: Integral Pup Joint 2" FIG1502

Material: Forged Alloy Steel 4130, 35CrMo.

Connection: 1502 Hammer Union

Size: 2"

Pressure: 15000 Psi

Length: 1' to 12'

Standard: API 16C

PME Sales Team

Tel: +86 21 5837 2350

Cell: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

PME Quality Flowlines, Certified by SGS

PME is the HP flowlines manufacturer in China. We produce and export quality treating irons.



Our flowlines includes integral pup joints, swivel joints, integral adapters, tees, hose loops and flow control valves.



Below materials have been inspected and certified by SGS Inspection, which is one of the most famous third party inspection companies.



SGS inspection to PME flowlines scope covers quantity check, visual check, dimension check as PME manufacturing flowlines drawings, pressure test reports, heat treatmenting reports, hardness and impact result, NDT test report, calibration certification etc.



SGS Inspect material List:

Integral Pup Joints, 2" FIG 1502 Male x Female, CWP 15000 Psi, Length 5ft, 8ft, 10ft

Swivel Joints, 2" FIG 1502 Male x Female, Style 50, CWP 15000 Psi

Integral Adapters, 2" FIG 1502 Male x Male, Female x Female, CWP 15000 Psi

Integral Tee, 2" FIG 1502 Female x Female x Male, CWP 15000 Psi



PME have strict quality control system to ensure the quality and traceability for oilfield equipment supply.



Feel free to contact PME Sales Team for quality flowlines fittings in good prices.



Email: contact@pmeindustrial.com

Cell / Whatsapp: +86 138 1899 0736

Shanghai PME Industrial Co., Ltd.

Tel: +86 21 5837 2350

Cell: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Integral Pup Joint Flowline Pipe China Manufacturer 2 Inch, 3 Inch, 15000 Psi, FIG 1502

PME Integral Pup Joint

Size: 2", 3"

Working Pressure: 15000 Psi

Ends: FIG 1502

Length: 2ft, 3ft, 4ft, 6ft, 10ft

Material: AISI 4130

Type: Compatible and Interchangeable with FMC Chiksan Treating Iron

Process: Forging, Heat Treatment, CNC Machining, Painting

Manufacturer: PME, China

Shanghai PME Industrial Co., Ltd.

Tel: +86 21 5837 2350

Cell: +86 138 1899 0736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com

Integral Pup Joints 2 1502 Sour H2S Service Supplier in China

PME integral pup joints are made in China in quality alloy steel like 35CrMo, 4130 as clients required.

As integral flow equipment supplier in China, Shanghai PME Industrial offer integral and NPST straight pipe, also named pup joint ends with 2", 3", 4", 602, 1002 and 1502, male x female, working pressure up to 20000 psi.

PME Industrial integral pup joint can be used in oilfield standard service and sour gas (H2S) service. As a part of high pressure manifolds, Shanghai PME high pressure flow iron function well as FMC Chiksan pup joint FIG1502, FIG602, SPM flow control products 2" & 3" 1502, and WECO fittings and pup joints.

If you have request for the following items, including but unlimited, please contact PME by EMAIL: contact@pmeindustrial.com, or CALL US TODAY: +8613818990736

PME Industrial 3 inch pup joint 1502, 5 ft, Pressure rating: 10000 psi, Sour Service, 3" 1502 WECO Connection

PME Industrial 3 inch pup joint 1502, 10 ft, Pressure rating: 10000 psi, Sour Service, 3" 1502 WECO Connection

PME Industrial 3 inch pup joint 1002, 5 ft, Pressure rating: 7500 psi, Sour Service, 3" 1002 WECO Connection

PME Industrial 3 inch pup joint 1002, 10 ft, Pressure rating: 7500 psi, Sour Service. 3" 1002 WECO Connection

PME Industrial Pup Joint 1" Lengths 0.5 M with 1" FIG 1502 Union Connections (M/F) Welded, Standard Service

PME Industrial Pup Joint 1" Lengths 1 M with 1" FIG 1502 Union Connections (M/F) Welded, Standard Service

PME Industrial Pup Joint 1" Lengths 3 M with 1" FIG 1502 Union Connections (M/F) Welded, Standard Service

Pup Joint 2" FIG 1502 Male x Female, Integral, 10 Feet Long, STD Sour Service, 15000 Psi CWP, AISI 4130

Worldwide stockist, distributor, oilfield service contract, trade agent for high pressure flow equipment supply are welcomed to send RFQ.  PME Industrial Sales Team offer you quotation with best price, delivery time and sample necessary test certificate of integral pup joints.

PME proposal with estimated shipping cost in CIF price will be offered for your reference.

Whatsapp: +8613818990736

Shanghai PME Industrial Co., Ltd.

Tel: +86 21 5837 2350

Cell: +86 138 1899 0736

Email: contact@pmeindustrial.com

For More Flowline Equipment: www.pmeindustrial.com

Where to buy integral pup joints exchangeable with FMC WECO?

FMC WECO fittings are forged with integral WECO wing unions ends for choke and kill manifold. WECO pup joints 2", 3", 4" are forged with high quality seamless pipeline.

Where to buy quality pup joints as FMC WECO in China? Shanghai PME Industrial Co., Ltd. is your first choice for straight joints exchangeable with WECO.

PME integral pup joints are forged in steel 4130, 35CrMo,  or other material customized by clients.

WECO type union ends female x male are optimized for fast and easy assembly, figure in FIG602, FIG1002, FIG1502. PME integral pup joints are with weco type hammer union can achieve working pressure rating: 6000Psi to 15000Psi.

As the most important section of FMC/SPM flowline pipeworks, integral pup joints are ends with integral hammer unions, welded, API threaded, and NSPT. PME Industrial integral pup joints are widely used in high pressure well service flowlines, fracturing manifold, well testing, cementing and circulating, both standard and sour gas service available.


Get PME integral fitting for flowlines catalog, dimension, drawings, contact PME today!

PME Integral Pup Joints Link:
http://www.pmeindustrial.com/index.php/pipe-straight.html

Whatsapp: +8613818990736


International Sales Team

Shanghai PME Industrial Co., Ltd.

Tel: +86-21-58372350

Cell: +86-13818990736

Email: contact@pmeindustrial.com

Site: www.pmeindustrial.com
